LT-50
Overview:
Multifunctional portable mobile power supply, is a AC 110V/220V single-phase output, multi-voltage DC output power supply equipment. It has high efficiency and high reliability, the design uses lithium iron phosphate battery as the energy storage main body, with high safety, small size, large capacity, light weight, large power, easy to carry and other characteristics.
Features:
Battery type: Lithium iron phosphate battery | Battery capacity: 50.4V100Ah (5040Wh) | Output power.4000W |
Output waveform. Pure sine wave | Charging parameters: 58.8V15A | AC output voltage: AC220V |
DC output: 12V10A, 24V12A, 48V20A, USB18W | Cycle life: 2500 times. Remaining capacity 80% (5%-95%DOD) | Shell material: ABS+alloy |
Product size: 610*440*250(mm) | Packing size:775*540*330(mm) | Product net weight: 45KG |
Total weight: 50.5KG | Color: black |
Individual application scenarios:

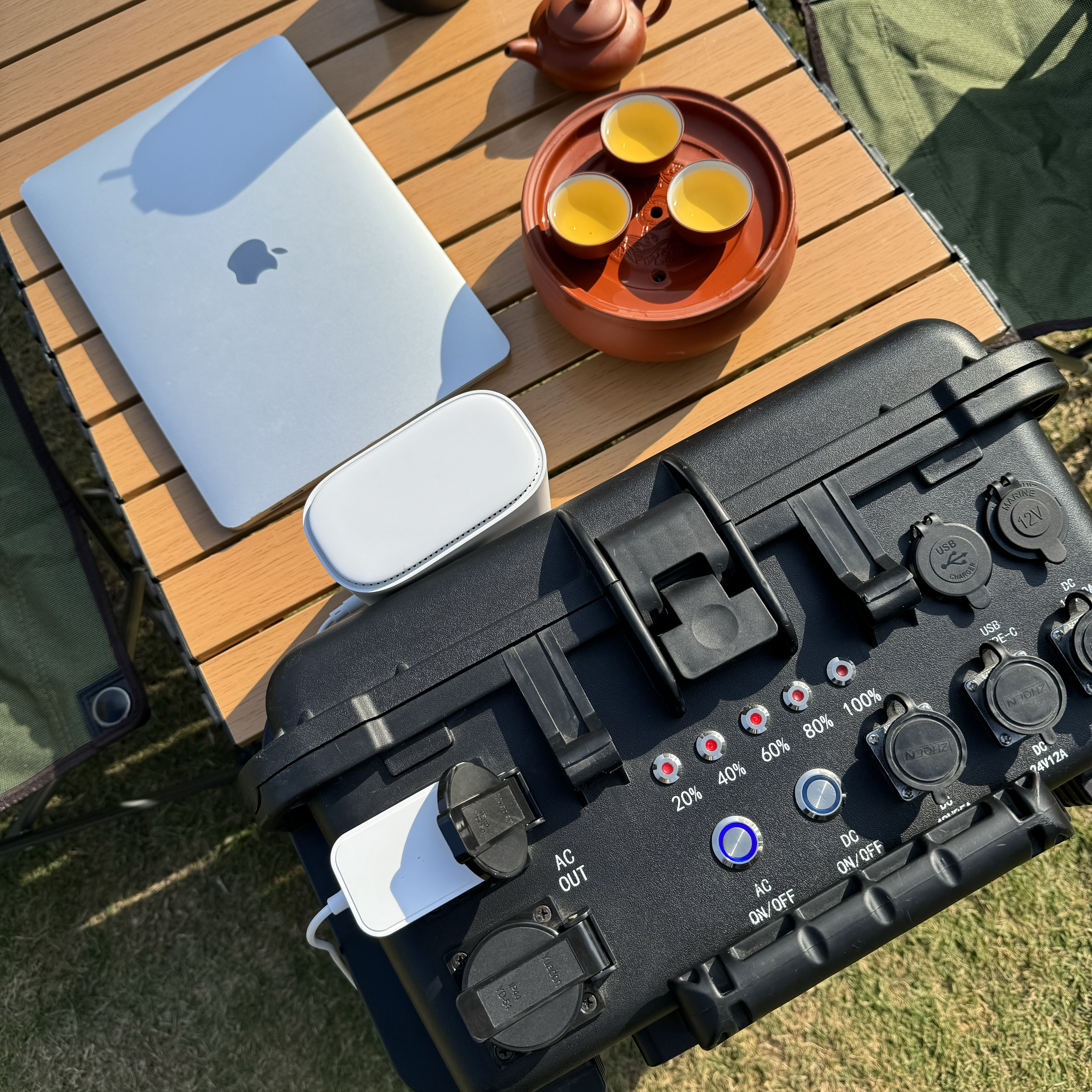

Outdoor application | Camping, power tool operations, scientific research and exploration IT equipment electricity, emergency lighting, etc. |
home application | TVs, standing fans, laptops, smartphones, tablets, etc. |
Digital electronic products | Projectors, cameras, small mixers, drones, game controllers, etc. |
AC and DC Instructions for Use:
Note: 12V cigarette lighters cannot be used to heat cigarette butts! It can only power electronic products. Do not use a load that exceeds the rated power of this power supply. The over-power power supply will automatically cut off the output. When the power supply drops to 20%, please save important data in advance. Be prepared to replace the power supply. And charge the power supply in time. |

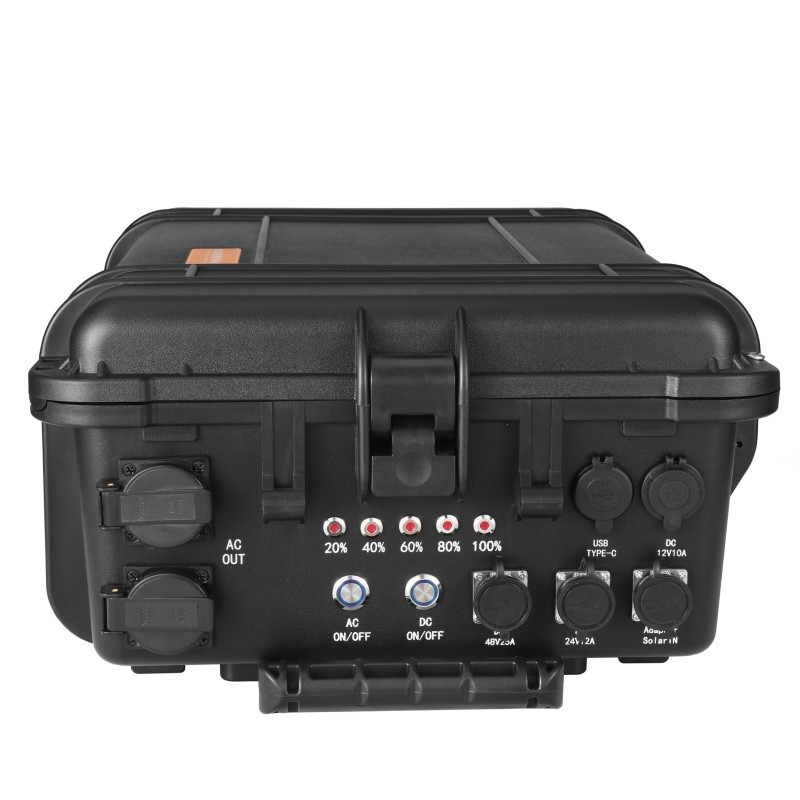

AC use: Turn on the AC switch AC/ON/OFF. The power indicator lights up. And the power supply will make a "beep" sound. The fan will rotate for 1 second and stop. The AC output is normal and AC/OUT can be connected to the load! |
DC use: Turn on the DC switch DC/ON/OFF. The power indicator lights up and the DC output turns on 48V/24V/12V. It can be used at the same time. Pay attention to select the correct output voltage to avoid damaging electrical appliances. Use USB or TYPE-C Need to be opened separately USB/TYPE-C output port switch |
FAQ:
1. How long does it take to fully charge the portable power supply?
Answer: Charging time is about 6~7 hours. Please pay attention to choose 58.8V15A charger.
2. What kind of equipment can be used with portable power supply.
Answer: When using new energy vehicle charging, please note that the total power of the equipment is less than 400Wh. Besides,we should pay more attention to the disinfection cabinets, audio, electric drills and other equipment.
