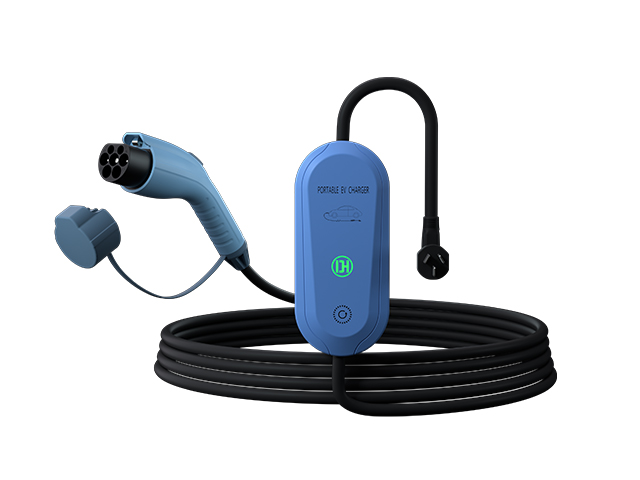

QE-G16

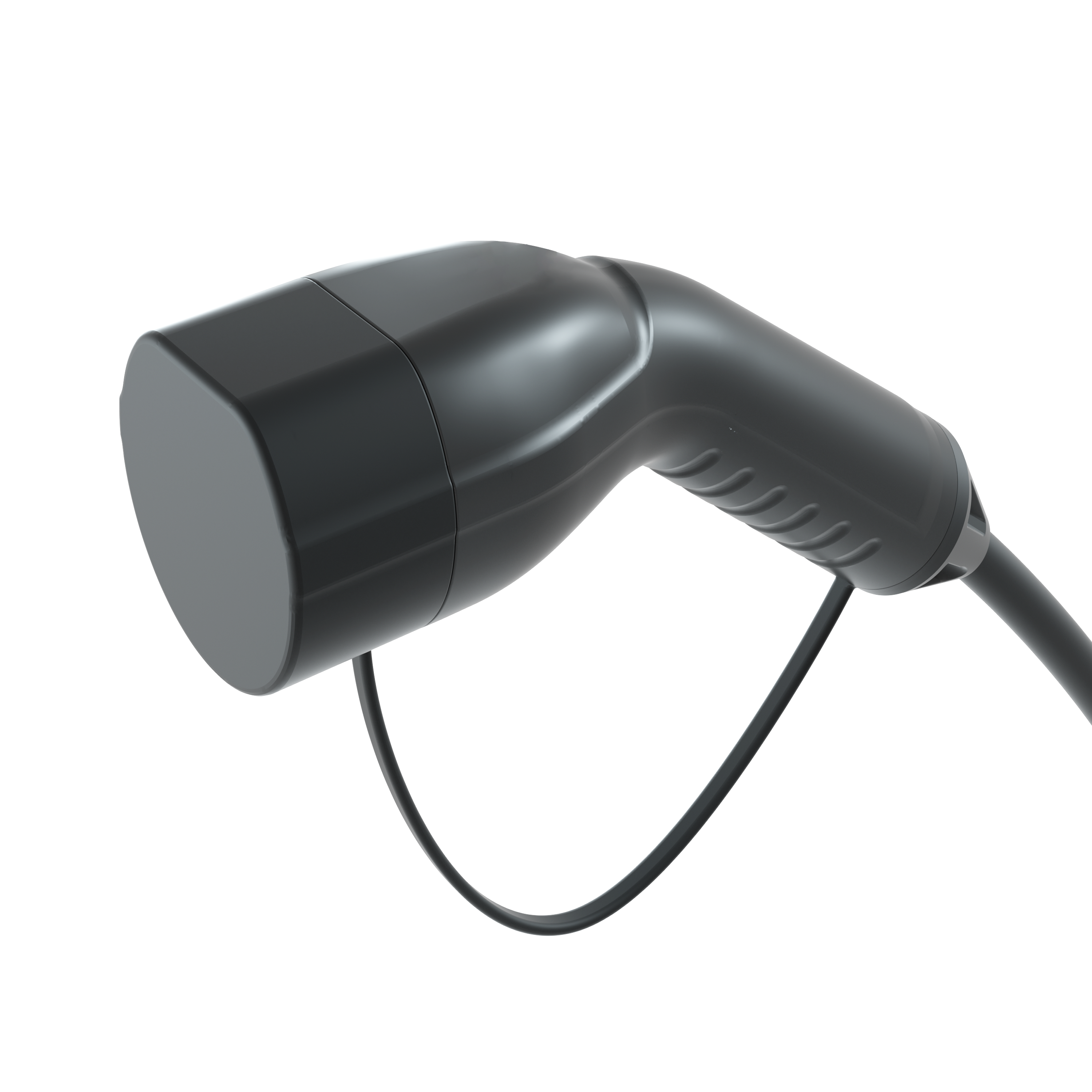

220V/16A portable charging pile, can be charged anywhere there is electricity, support 16A socket, plug and plug can be charged.
It has a charging safety protection function to monitor the burning risk caused by overheating during the charging process.
Prevent the circuit from high voltage or power supply instability caused by lightning strikes, and protect the safety of the circuit and battery.
parameter：
| Model：G16-1TP | Rated voltage：220V AC | Rated power： 3.5kW | Frequency：50/60Hz |
| Rated current： 8A/10A/13A/16A AC Adjust | Charger type： Single-phase AC conduction charging | Box type： LCD + Indicator light | Operating temperature： -25~+50℃ |
Storage temperature：-30~+80℃ | Relative humidity： 5~95%RH(No condensation) | Box size： 205*90*46mm | Cable length：5m |
| Weight：1.8kg | Standard： IEC 62196-2016 / EN IEC 61851-2017 / IEC 62752-2018 | Waterproof level： Box:IP65 Gun：IP54 |
4 current modes are optional(8A/10A/13A/16A), which can meet the charging requirements of different current demand models and meet the safe use of electricity in different power supply environments.
Notice:
1. Alternate flashing refers to a cycle of two colors that alternately light up and off.
2. Short press the touch button of DHEA-G16-1 to restore the system;
3. Press and hold the touch button for 3 seconds to ignore the grounding abnormality and fire zero phase error and continue working (it is recommended to eliminate the abnormality before charging)
4. DHEA-G16-1TP double-clicks the touch button to cycle the current (needs to operate in standby mode)
safety warning:
1. It is strictly prohibited to immerse this product in water.
2. It is strictly prohibited to put your fingers into the charging gun plug.
3. It is strictly prohibited to place the device near objects that generate high temperatures or expose it to the sun.
