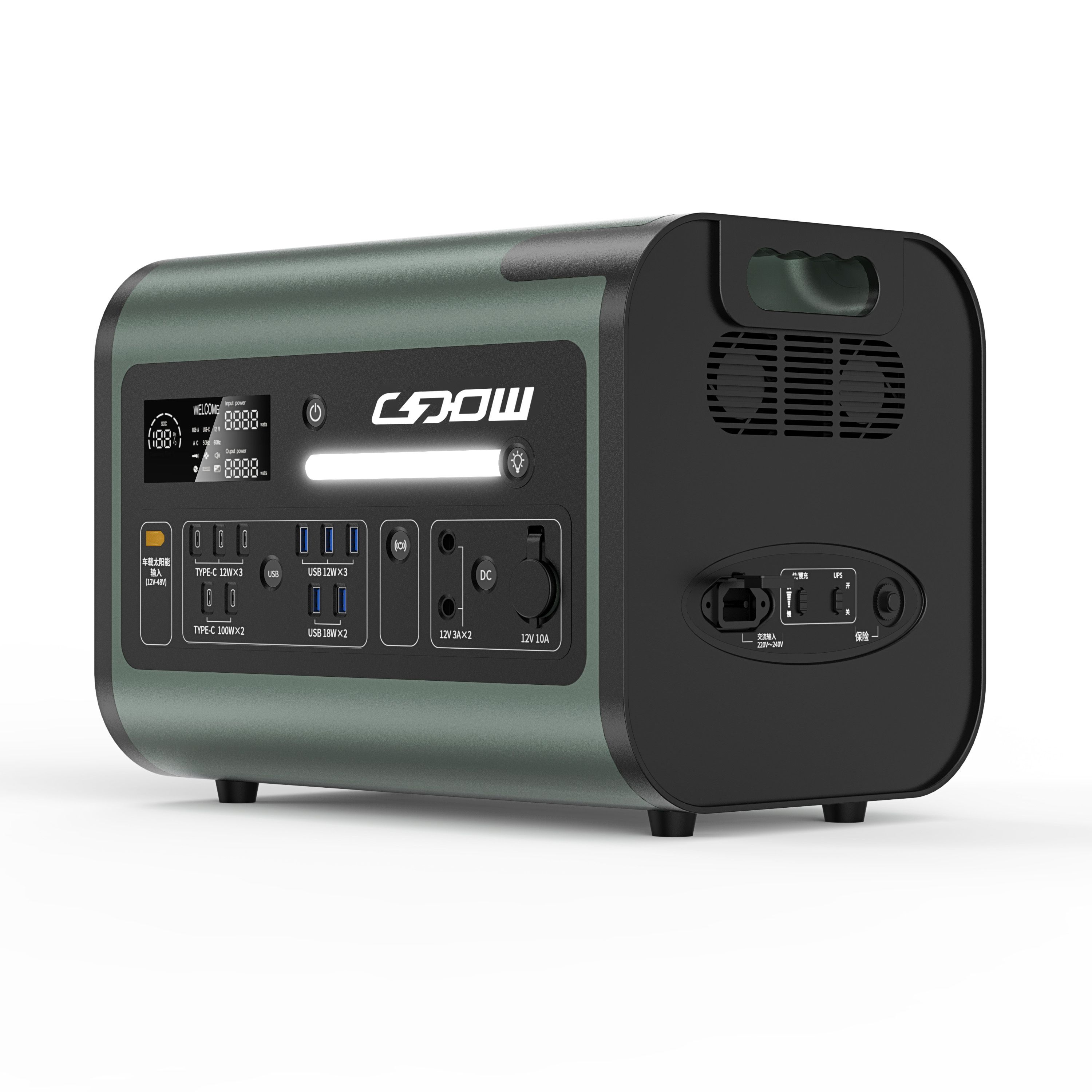

This power supply is a pure sine wave, high-performance portable mobile power supply, using our latest Q-power two-way inverter technology, with UPS uninterrupted function, the mains power failure within 10 milliseconds automatically switched to power supply, to meet the needs of
continuous power, multiple protection.
When there is no load on the AC side, the battery can be charged at 1800W fast, and when there is a load, the battery can be charged and intelligent. Dc output USB5V/12V/Type-c/ wireless charging in one, and add vehicle and solar charging.
Output waveform | Ac pure sine wave |
Waveform distortion | < 3% linear load ,< 8% non-linear load |
Frequency | 50±0.5Hz |
Dc output voltage/Dc output current | 12V/120W USB/12W*3/18W*2 Type-c/18W*3/100W*2
Wireless charging/15W
|
Protection function
| Short circuit, overload, over temperature, over voltage, over current, under voltage, low temperature, etc |
Wireless charging | 1300W（Max） |
Charging parameter | 800W（Max） |
Battery capacity | 51.52V40AH(3.22V*16S) |
Cycle life | >2000 times, remaining capacity 80%（5%-95%DOD） |
Apparent dimension | 405*275*303(mm)Foot pad height included |
weight | ~25Kg |
Multi-function charging ： |
Item | Argument | Remark |
Charging adapter | 1500W | 220V |
Solar panel | 800W | 12~75V dc |
Wind turbine | 800W | 12~75V dc |
Hand generato | 800W | 12~75V dc |
charging

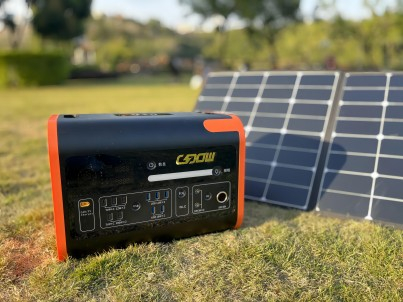

Solar charging display
Camping out
Application of individual scenarios
For example: Drones, computers, electric drills, barbecue ovens, speakers, mobile phones, and other live products
Ac 220V use
When using the power supply, please pay attention not to block the exhaust vents on both sides of the power supply. The left and right sides should be at least 50 cm away from the obstacles to avoid affecting the heat dissipation of the power supply during use.Affect the use. Hold down to turn on the main power switch，Display openPress and hold the AC switch again，ACDisplay AC and output frequency indicator turned on,When the fan self-test starts for 2 seconds and stops, the AC output is normal and the fan can be connected to the AC power device. The display will display the real-time output power. If the fan is not in use, hold down the switch for 3 seconds to turn off the AC switch, and the power will automatically turn off the display in about 1 minute.
Note: Do not use the load exceeding the rated power of the power supply, the power supply will automatically cut off the output. When the power supply is as low as 20%, please save important data in advance, be ready to replace the power supply, and charge the power supply in time!
Q1: What type of cells do portable charging stations use?
A1: Portable charging stations use Class A lithium iron phosphate battery cells
Q2: How long can portable power stations last?
A2: Portable power station life can cycle charge and discharge >2000 times
