)1. Suitable for EVE 3.2V 280Ah and Qcepower 3.2V 280Ah LiFePO4 prismatic cells.
)2.Battery cell is made from lithium iron phosphate with safety performance and longer cycle life.
)3.Specially designed plastic cell holder features fire proof and insulation.8 cells in series composes a battery module,and two modules in series, then connected with BMS, composes a battery pack.

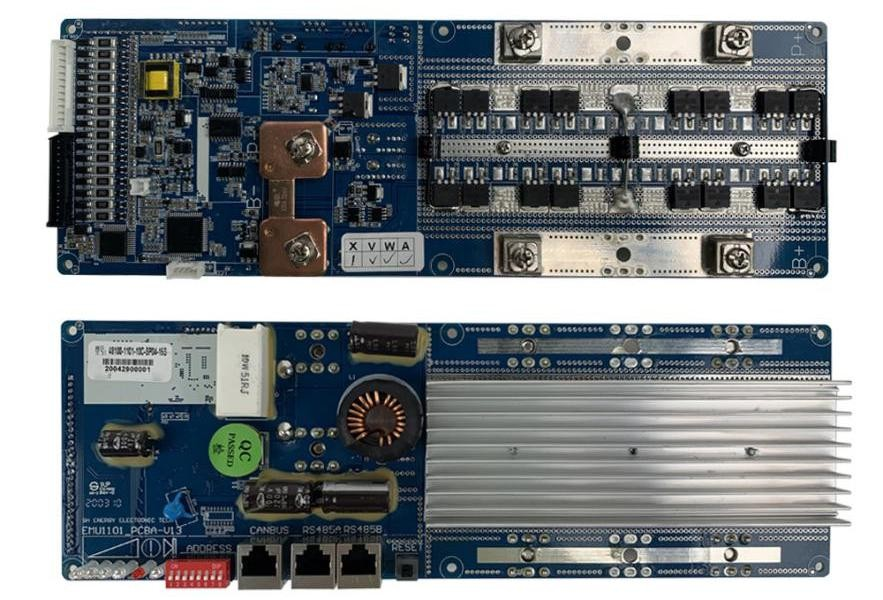

)4.BMS has over-discharge, over-charge, over-current, high and low temperature warning and protection functions.
)5.BMS monitors the charge and discharge state, and balance the current and voltage of each cell.
)6.BMS comes with upper computer system for real-time cell and pack voltage, current, temperature, and battery status monitoring and recording.
)7.Flexible configuration, max. 16 packs can be connected in parallel for expanding capacity and power with 8 DIP switches.
)8.Pre-programmed with multi-protocols, atpow-280 51.2V 280Ah works with multi-brands of inverters. Check the communication inverter list.

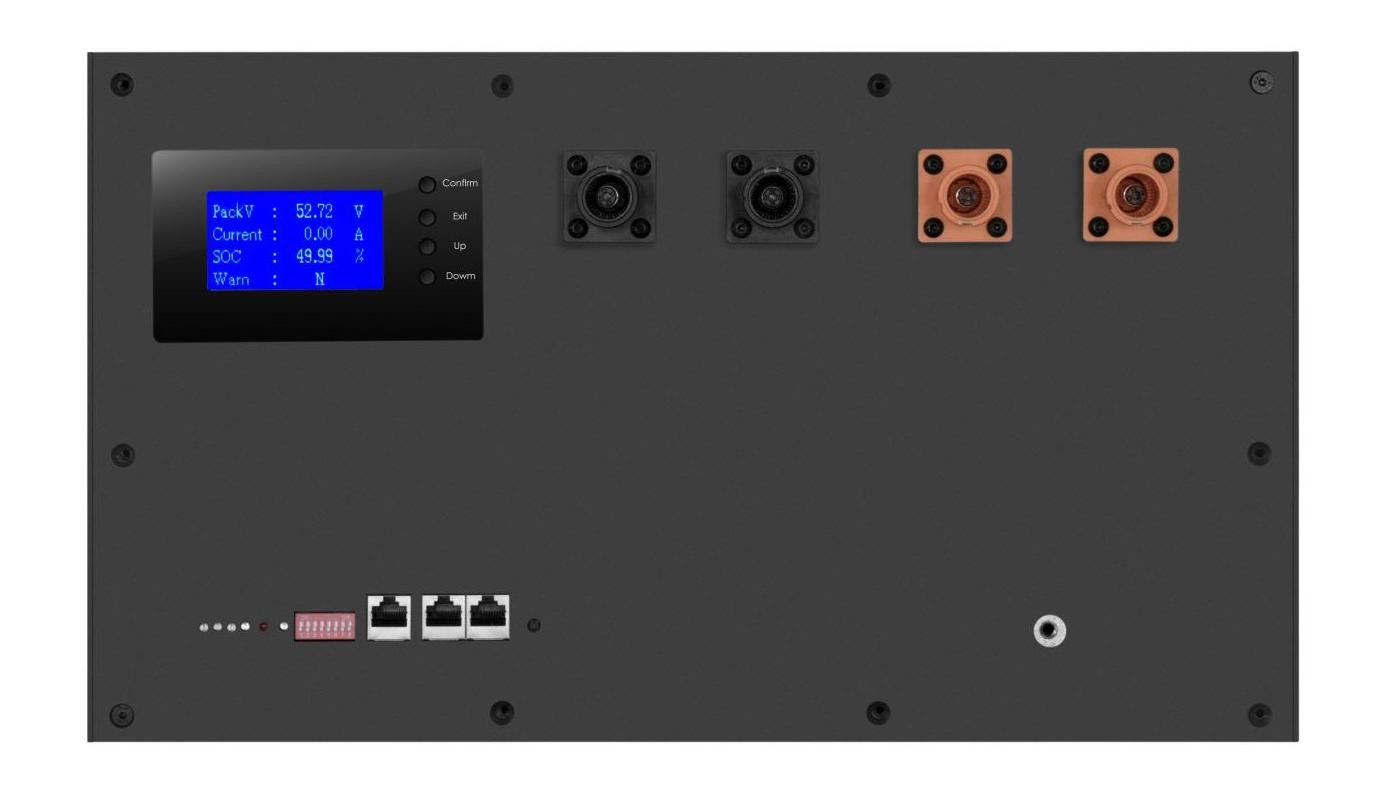

interface:

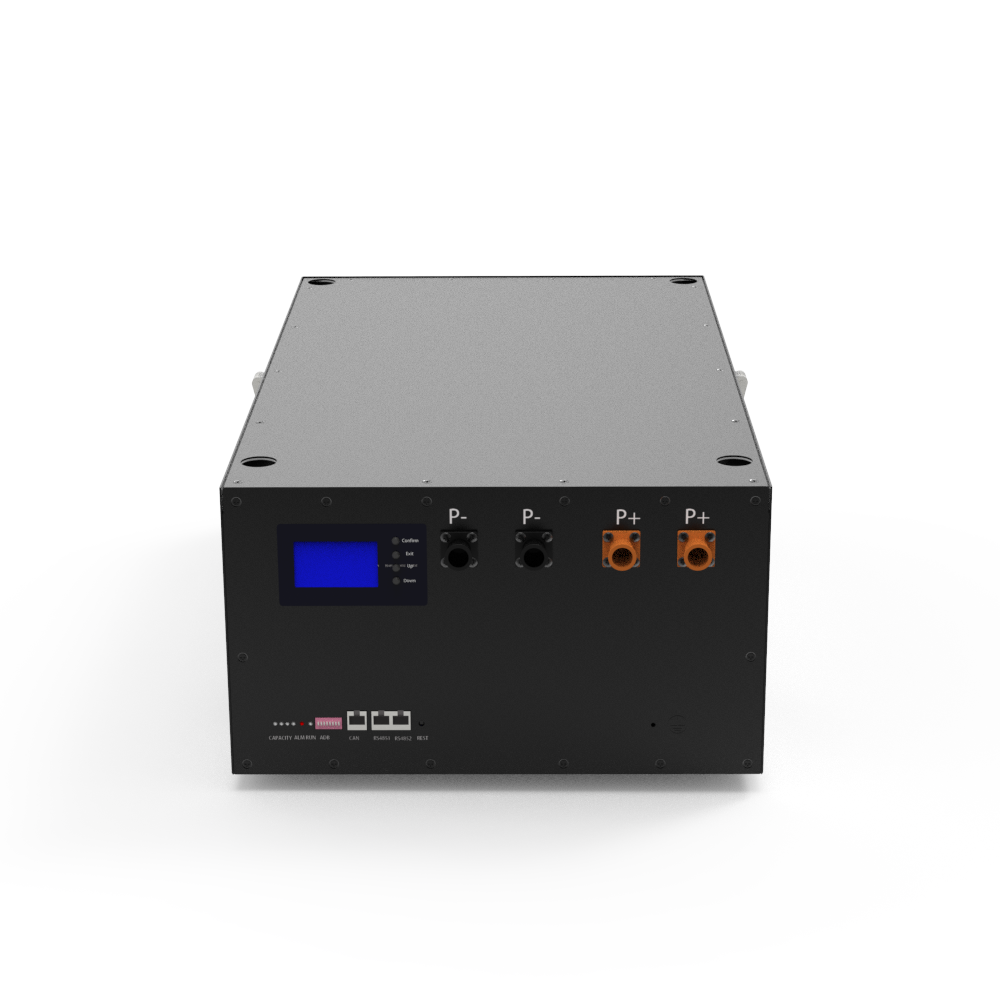

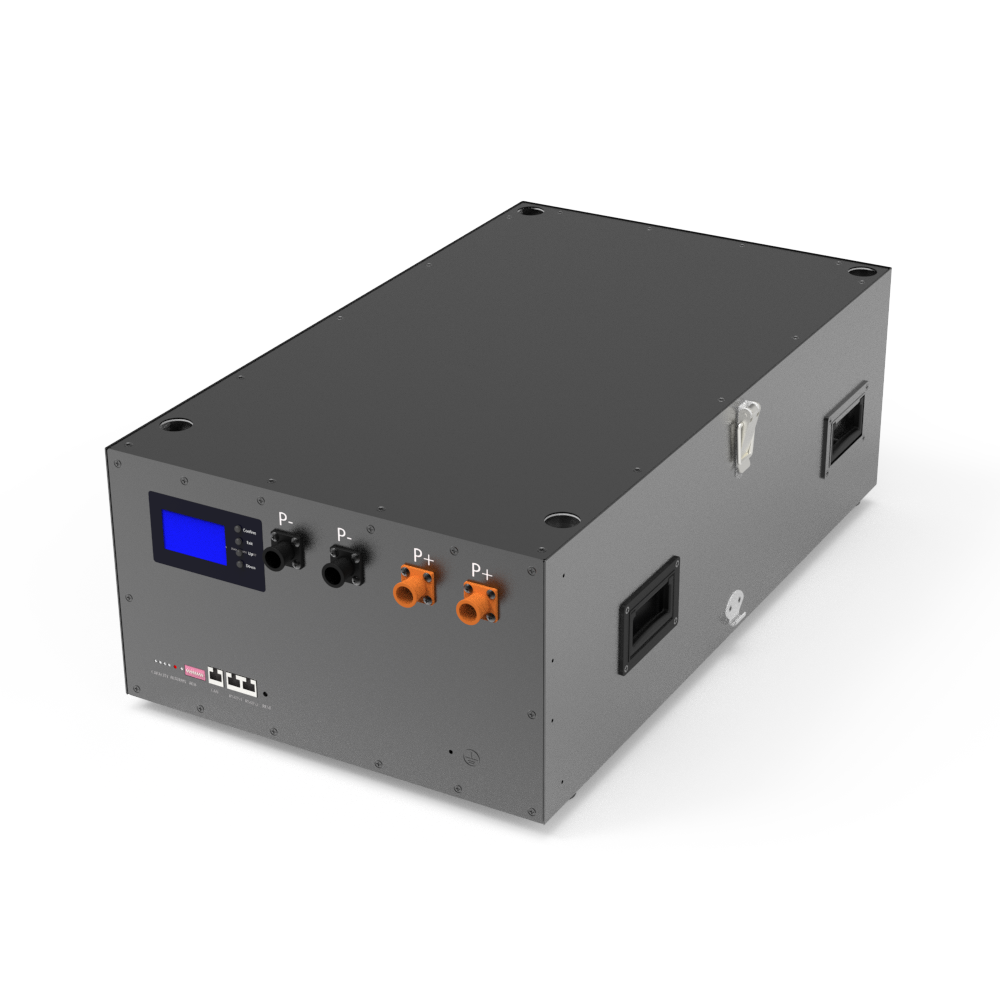

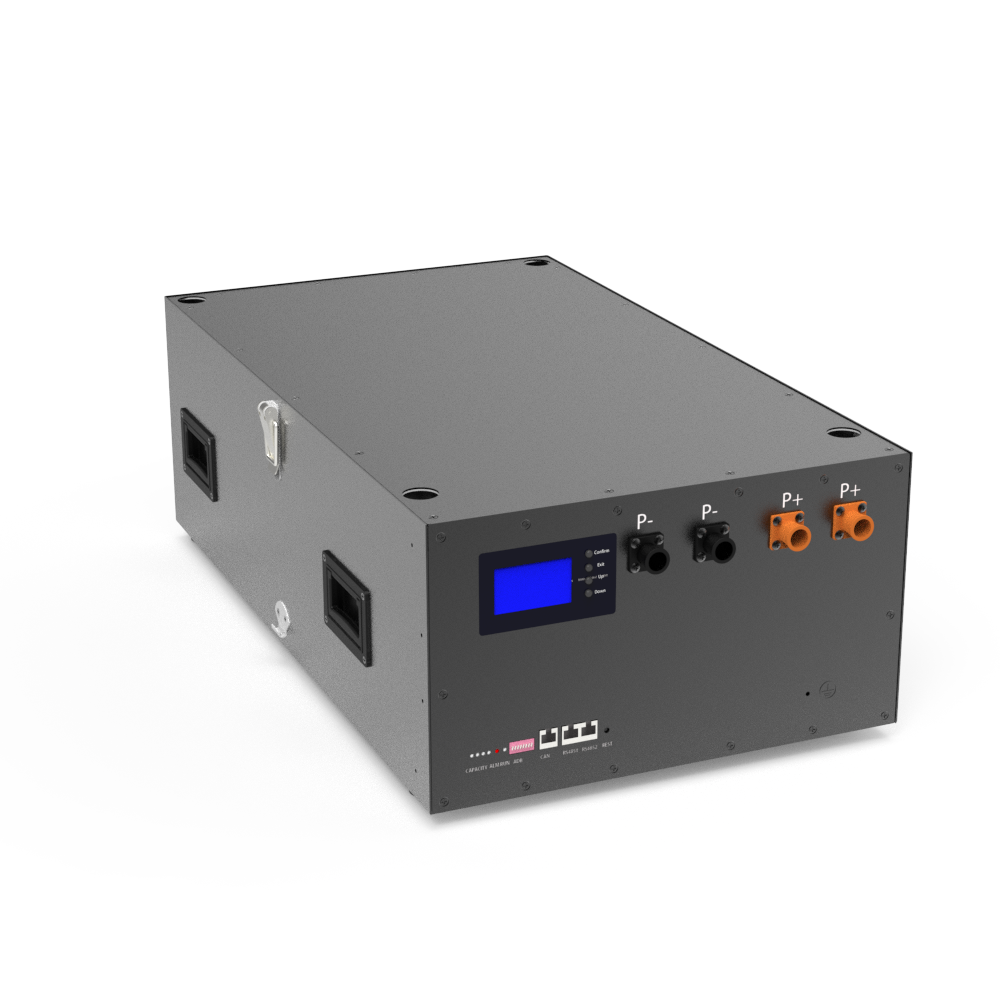

)1.Reset button:to start the battery pack, hold the button for 2s to turn on battery pack.
)2.RS485 communication interface:RJ45 port, follow RS485 protocol. For transmitting battery pack information between paralleled packs. The first 4 DIP switches (#1, #2, #3, #4) are used for identifying packs’ information on software.
)3.CAN 5 communication interface:follow CAN BUS protocol, for output pack information to inverter. One pack should be assigned as master pack. And the last 4 DIP switches (#5, #6, #7, #8) to tell how many slave packs are followed. The firs DIP switches are used for identifying slave packs.
)4.ADS Switch:To setup battery address for identification, and make the communicate between batteries, battery to inverter.
)5.NOTE:There are 8 bit DIP switches, keep the switch on down side means ‘OFF’, turn up the switch to top sidemeans 'ON’
)6.ALARM light:red LED flash to show the battery alarm status. And red light to show the battery in protection status of abnormal temperature, over-current, or short-circuit.
)7.Working light:green LED to show the battery working status.
)8.SOC light:4 green LED lights to show the capacity status of battery pack. Each LED represents 25% the capacity.
How to use the power terminal:
Power terminals
Power terminals
Power terminals

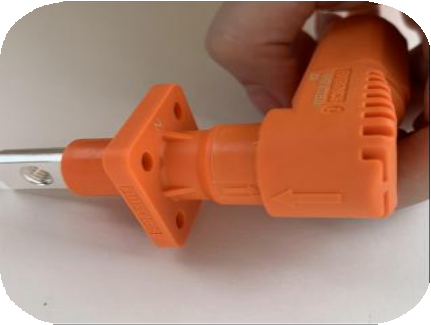

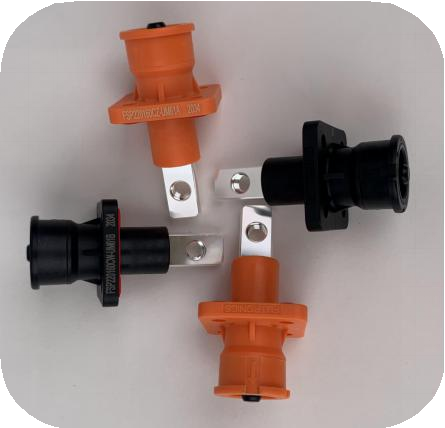

Power terminals:
two pairs of power terminals with the same function, one connect to equipment, and the other one parallel to other battery pack for capacity expanding. For a single pack, both terminals can achieve charging and discharging functions.

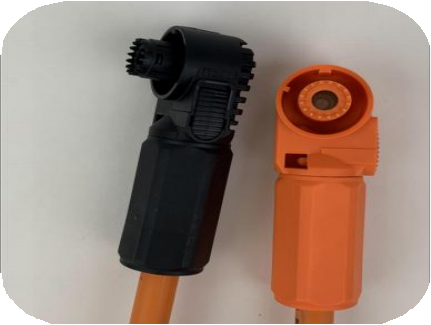

note:Power cable uses 6.0mm power plug with lock button. And can be full rotation.
Battery features:
Qcepower3.2V 280Ah lithium iron phosphate (LiFePO4) aluminum case prismatic rechargeable battery cell.
Nominal Voltage | 3.2V |
Nominal Capacity | 280Ah |
Weight | ≤5.5Kg |
Self-discharge Rate | ≤3.5% per month |
Initial Internal Resistance（1KHz） | ≤0.25mΩ |
Qcepower Technology applies high quality Grade A cells inside the battery box. And did the following designs to prolong the battery pack cycle life.

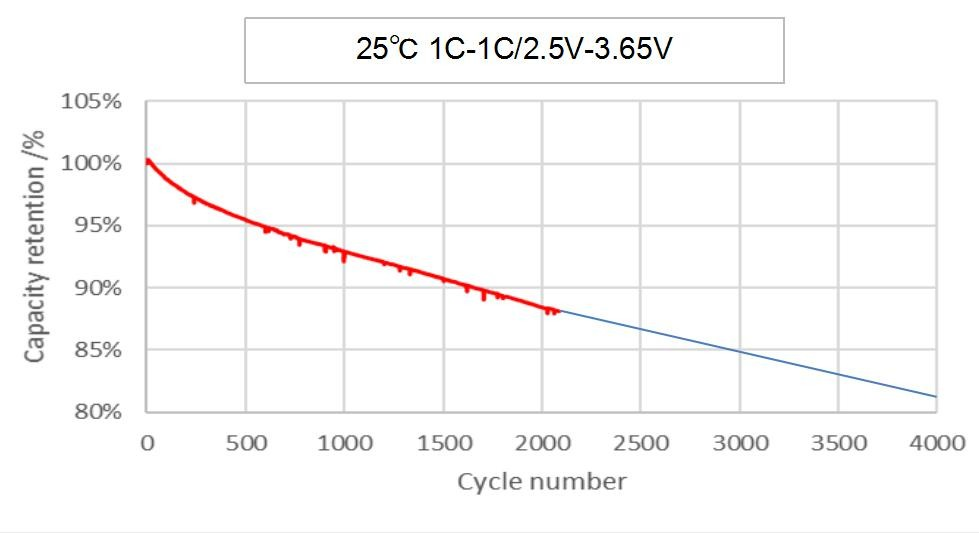

| According to the test report, if the battery pack is charged and discharged at 0.5C, the battery pack can reach more than 6,000 cycles of 1000 times when the remaining capacity is 80% at room temperature at 25°C. |
Advanced Battery Management System (BMS):
The BMS is applied to monitor current, voltage, temperature, protection against over-charge, over-discharge, over-current, over-temperature, under-temperature and short circuit. The BMS provides cell balancing and current limitation during charging process to ensure a reliable safety and performance. |
BMSFunction introduction:
)1.Over charge protection
)2.Over discharge protection
)3.Over current protection
)4.Cell balancing
)5.Temperature protection
)6.CAN and RS485 communication
Monitoring software:
Battery pack can be remotely monitored with BATTERYMONITOR software. With this software, battery voltage, cell voltage of single cell and pack, SOC status, cell temperature, voltage differences can be monitoring in real time. Through history record, battery status can be checked afterwards.

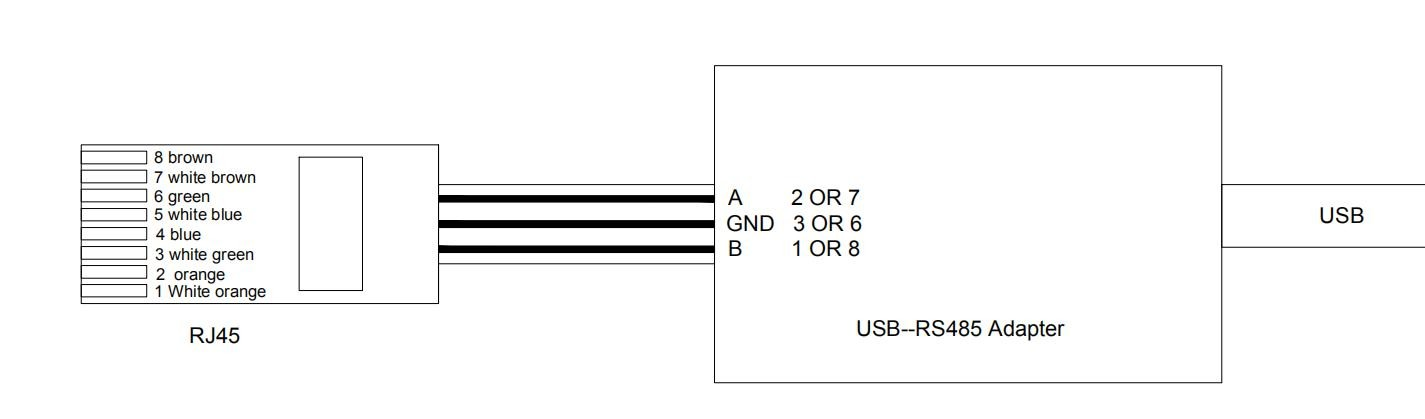

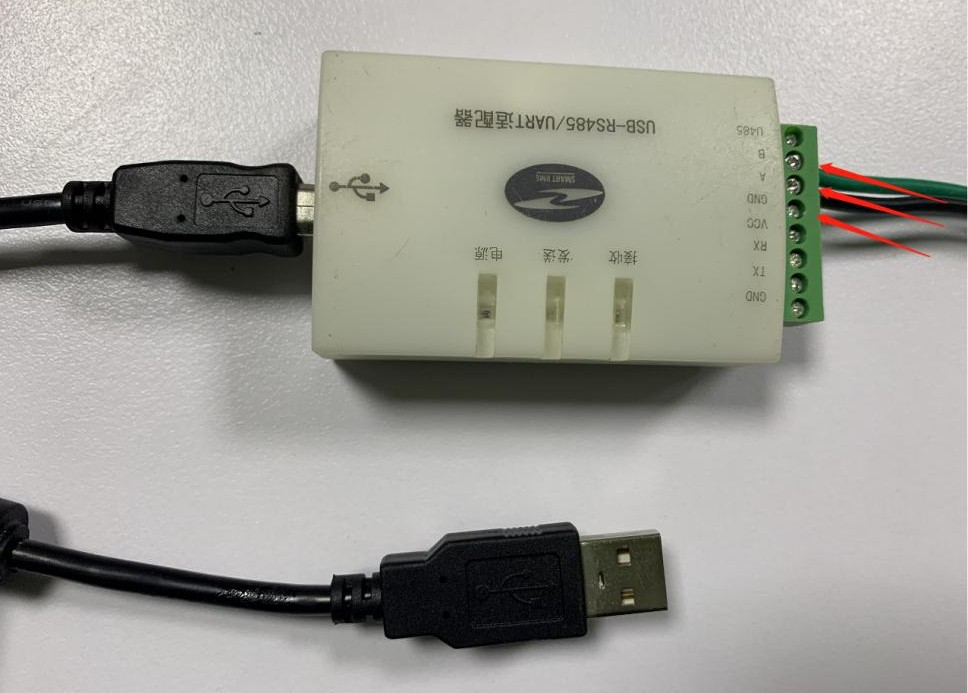

First, connect Qcepower to the master computer with USB-RS485adapter. If the adapter needs wiring, follow the wiring diagram.
Compatible Inverters:
Battery pre-programmed with multiple CAN protocols to compatible with multi-brands of inverters. To make sure that the battery module works perfectly, it would be better to use the compatible inverters listed below. |
Note:
Different models of inverters may comes with different protocols and designing even for the same brand. For some models, a firmware updating is required for perfect communication. |
Pre-programmed CAN Protocol list:
Goodwe-V1.5 |
Pylon-V1.3 |
Growatt-V1.05 |
Victron CANBUS_PROTOCOL |
CAN Protocol |
Sofar_REV5 |
| SMA_EN_10 |
Charging Settings:
Parameter | Setting |
Battery type | Lithium |
| Charge curve | Fixed |
Absorption voltage | 57.6V |
Float voltage | 55V |
Absorption time | 1Hr |
)1.Make sure to double check the float voltage after completing Assistants, and if necessary set it back to 55.0V.
)2.For off-grid use: ignore the 'BMS assistant required' warning.
Inverter Settings:
Parameter | Setting |
DC input low shut-down | 43V |
DC input low restart | 47V |
DC input low pre-alarm | 47V |
Installation Application:
Battery pack wiring (Pack to pack)
Battery pack wiring (Pack to pack):
| )1.Stack the battery packs onto the base. (Maximum 4 packs can be stacked.) |
)2. Connect cables between packs
|
| )3.Connect cable with inverter. |
Safety Precautions:
It is very important and necessary to read the user manual carefully before installing or using the product. Failure to do so or to follow any of the instructions or warnings in this document can result in electrical shock, serious injury or death, and could damage the battery, or potentially rendering it inoperable.
| )1.If the battery pack is stored for long time, it is required to charge them every six months, and the SOC should be no less than 50% |
| )2.Please recharged the battery pack within 12 hours, after fully discharged.
|
| )3.All the battery pack terminals must be disconnected before any maintenance. |
| )4.Do not use cleaning solvents to clean battery pack. |
| )5.Do not expose battery pack to flammable or harsh chemicals, or corrosive gases or liquids. |
| )6.Do not paint any part of battery pack, include any internal or external components. |
| )7.Do not expose the battery pack to direct sunlight for extended periods of time.
|
| )8.Do not connect battery pack with PV solar wiring directly.
|
| )9.Do not insert any foreign object into any part of the battery pack. |
