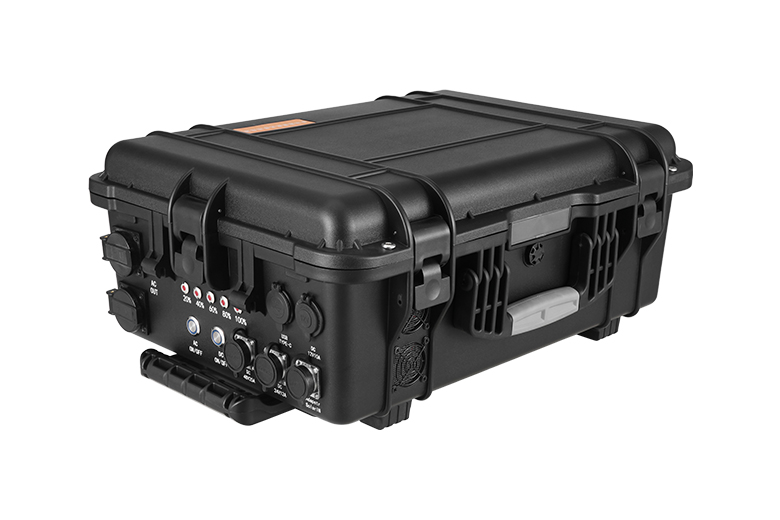

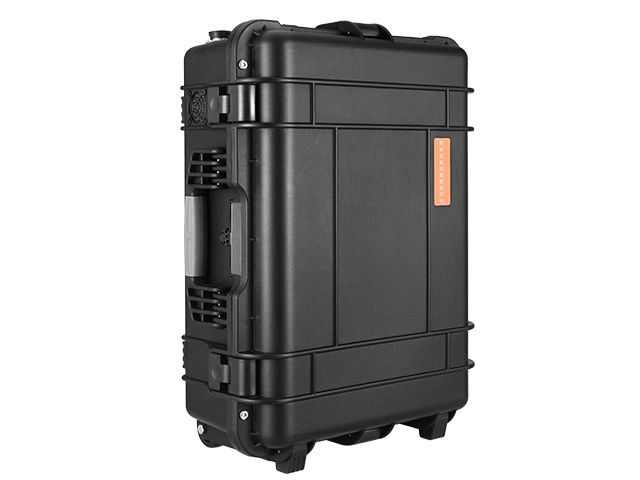

LT30
Overview
The 3000W portable outdoor charging station uses solar energy to achieve fast and convenient outdoor charging. Use solar energy to replenish your power station's batteries, ensuring you never run out of power when you need it most. Embrace more exciting outdoor moments without worrying about the battery life of your device. The portable pulley design is small in size and light in weight, making traveling and playing easier. One of the outstanding features of this product is the pure sine wave stable voltage, ensuring continuous and reliable power supply.
Product Features:
| Model: LT30 | Shell color: black | Battery type: Lithium iron phosphate battery |
| Peak output: 6000W | Output power: 3000W | Charging time: 6~7H |
| Battery capacity: 62.5AH | Charging parameters: 54V/12A | Appearance size: 610*440*250 (mm) |
| Output waveform: AC pure sine wave | DC voltage output: 12V/24V48V | Weight: 45KG |
The following are individual specific application scenarios of power supplies:
| 1.Outdoor application | Lighting, fans, projectors, speakers, inflatables, charging, cooking, etc. |
| 2.Home application | TVs, computers, rice cookers, electric blankets, washing machines, etc. |
| 3.manual application | Electric drills, cutting machines, circular saws, electric saws, lawn mowers, electric hammers, etc. |
| 4.Common electronic applications | Smart watches, tablets, drones, digital cameras, etc. |
AC and DC usage instructions:
| 1.For AC use, turn on the AC/ON/OFF switch, and the power indicator lights up at 20%, 40%, 60%, 80%, and 100%. The power supply will make a "beep" sound. The fan will rotate for 1 second and stop. The AC output is normal and can be used with a load. |
| Note: Do not use a load that exceeds the rated power of this power supply. The over-power power supply will automatically cut off the output. When the power of the power supply is as low as 20%, please save important data in advance, be prepared to replace the power supply, and charge the power supply in time! |
| 2.When using DC, turn on the DC switch DC/ON/OFF, and the power indicator lights up at 20%, 40%, 60%, 80%, and 100%. The DC output is on. DC/48V/25A DC/24/12A DC/12V/10A can be used at the same time. Pay attention to choosing the correct output voltage to avoid damaging electrical appliances. To use USB or TYPE-C, you need to turn on the switch of the USB/TYPE-C output port separately. |
| Note: 12V cigarette lighters cannot be used to heat cigarette butts! It can only power electronic products. Do not use a load that exceeds the rated power of this power supply. The over-power power supply will automatically cut off the output. When the power of the power supply is as low as 20%, please save important data in advance, be prepared to replace the power supply, and charge the power supply in time! |
FAQ：
| 1. How long does the portable power supply last? | Answer: This model LT30 stores 3000Wh ~3 kilowatt hours of electricity. As a reference, it is assumed that The power consumption of the equipment is 500W (electric kettle), then the working time is 3000Wh*0.9/500=~5.4 hours |
| 2. How long does it take to fully charge the portable power supply? | Answer: Charging time ~6-7 hours Note: Choose 54V/12A charger |
| 3. Does the portable power supply support solar charging? | Answer: It supports solar charging, supports 12V-75V DC output, and supports a maximum of 800W. |
