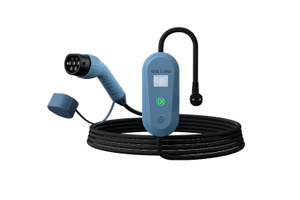

Portable new energy electric vehicle charging gun

New national standard, new energy charging gun, wide compatibility, compatible with most new energy vehicles, pins made of copper alloy surface, silver-plated top thermoplastic, national standard thick copper cable, stable output and not hot

Availability:

Quantity:



Inquire Add to Basket

Model:
QE-G16

Product Description

The national standard charging gun for new energy vehicles is suitable for 99% of new energy vehicles. No grounding wire required, plug and play, extremely fast charging, cut off the power supply when fully charged. Multiple safety protections at your fingertips, including leakage protection, overvoltage protection, temperature protection, and overcurrent protection.

Product function parameters:

model：DHEA-G16-1	Rated voltage：220V/AC	frequency:50/60Hz
rated power：3.5KW	charging method:Single-phase AC conductive charging	Instruction method:LED light
Operating temperature:-25~+50℃	storage temperature:-30~+80℃	environment humidity:5~95%RH non-condensing
Protection level:Monitoring box: IP65 Charging gun: IP54	Monitoring box size:2059046mm	Charging cable length:5M
net weight:1.8kg

The indicator light on the charging gun is defined as:

1.Standby - green light always on

2.Recharge - green light breathing

3.Abnormal - green light flashing

Notice:

1. Alternate flashing refers to a cycle of two colors that alternately light up and off.

2. Short press the touch button of DHEA-G16-1 to restore the system;

3. Press and hold the touch button for 3 seconds to ignore the grounding abnormality and fire zero phase error and continue working (it is recommended to eliminate the abnormality before charging)

4. DHEA-G16-1TP double-clicks the touch button to cycle the current (needs to operate in standby mode)

safe to use:

1.Make sure there is no damage or rust on any part of the charger.

2.Charging cannot be done if the power socket is damaged, rusty or not tightly connected.

3.The charging power socket should be dedicated and cannot be shared with other electrical equipment at the same time.

4.Before charging, make sure the power plug and power socket are of the same model.

safety warning:

1. It is strictly prohibited to immerse this product in water.

2. It is strictly prohibited to put your fingers into the charging gun plug.

3. It is strictly prohibited to place the device near objects that generate high temperatures or expose it to the sun.
