QE-G16

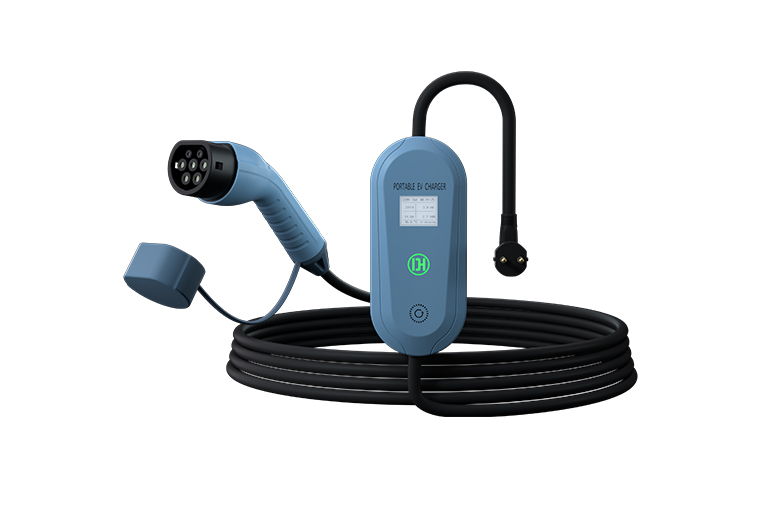

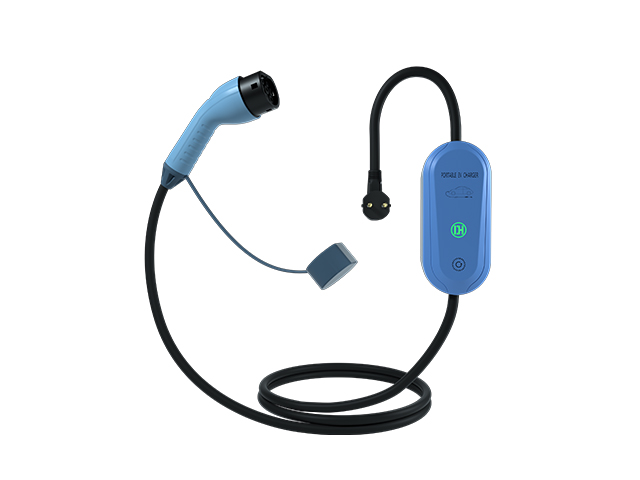

220V/16A portable charging pile, can be charged anywhere there is electricity, supports 16A socket, plug and charge. Charging is safer and intelligent temperature control is available. The charging gun has a charging safety protection function that can monitor the risk of burning caused by overheating during the charging process of the device. It can prevent the circuit from being exposed to high voltage caused by lightning strikes or unstable power supply, and protect the safety of the circuit and battery.
Product parameters:
| Rated voltage: 220VAC | Rated current: 16A/AC | Frequency: 50/60HZ | Rated power: 3.5KW |
| Charging method: single-phase AC conductive charging | Instruction method：LED light | Operating temperature ：-25~+50℃ | storage temperature：-30~+80℃ |
Environmental humidity: 5~95%RH without condensation | Protection level: Monitoring box: IP65 Charging gun: IP54 | Monitoring box size:205*90*46mm | Charging cable length:5m |
| net weight:1.8kg |
safe to use：
| 1. Make sure that no parts of the charger are damaged or rusted. |
| 2. Charging is not possible if the power socket is damaged, rusty or not tightly connected. |
The charging power socket should be dedicated and cannot be shared with other electrical equipment at the same time. |
| 4. Before charging, confirm that the power plug and power socket model are consistent. |
Charging steps:
| 1:Take out the charger and insert the power plug into the power socket |
2:Check whether the indicator light or LCD screen of the monitoring box is normal |
3: Open the protective cover of the charging gun head, insert the charging gun into the vehicle charging socket, and confirm the connectionin place. |
| 4:Check the indicator light status of the monitoring box and charging gun. Generally, it will automatically enter the charging state. |
Kind tips:
| 1. Only used in environments with an RCD circuit breaker at the power supply end. |
| 2. If the cable length is long, avoid pulling the cable forcefully; avoid vertical hanging, long-term swaying and vibration, which will reduce the life of the cable. |
| 3. Avoid dropping the control box or placing heavy objects on its surface. |
| 4. Be careful to avoid using it in environments with corrosive liquids, flammable dust, and highly corrosive environments. |
safety warning:
| 1. It is strictly forbidden to immerse this product in water. |
| 2. It is strictly prohibited to put your fingers into the charging gun plug. |
| 3. It is strictly prohibited to place the device near objects that generate high temperatures or expose it to the sun. |
