LT40

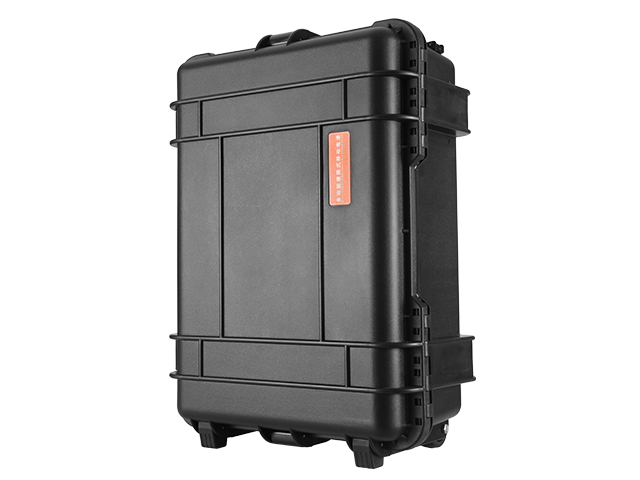

Pull rod box type portable power station outdoor emergency generator
Battery capacity at least 3840 Wh:
Watt-hour (Wh) is a unit of watts per hour, so a battery with a capacity of 3840 Wh is equivalent to running 3840W of equipment for one hour. (Available batteries are designed for less than 100% capacity for a variety of reasons.) In other words, it's like running a 500 W device (such as a MacBook Pro, projector, or desktop fan) for seven hours. We made this a requirement for our primary selection and strongly preferred it for our budget and lightweight competitors. When it comes to batteries, capacity is king.
Product details：

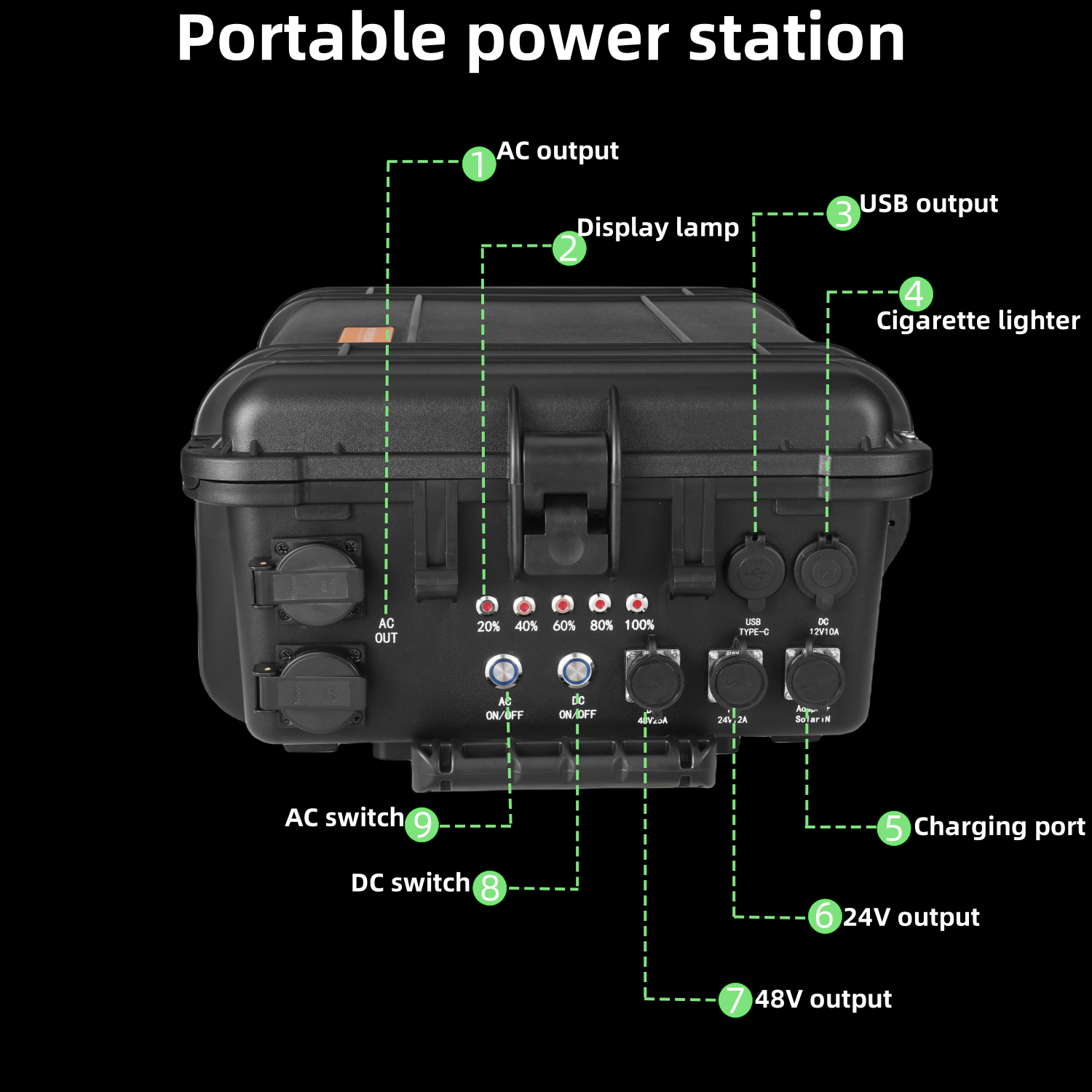

Key description

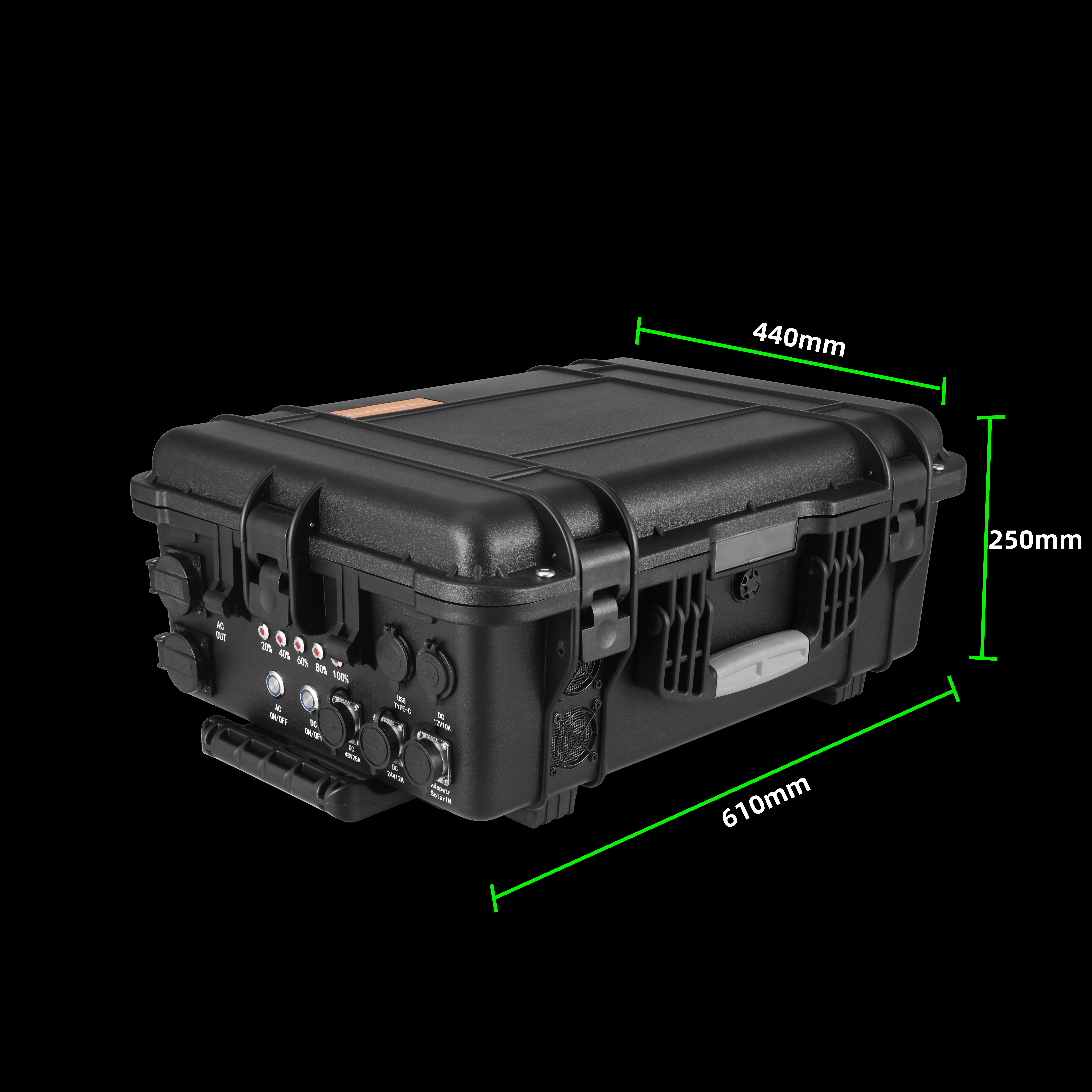

Dimensional specification
Product parameter：
| Battery type | Lithium iron phosphate battery | ||
| Ac output current | 15A MAX | ||
| Ac output voltage | 220V±5% | ||
| Output power | 4000W | ||
| Peak power | 8000W | ||
| Output waveform | Ac pure sine wave | ||
| Waveform distortion | < 3% linear load, < 8% non-linear load | ||
| frequency | 50±0.5Hz | ||
| Dc output voltage |
12V |
24V |
48V |
| Dc output current |
10A(MAX） |
12A(MAX) |
50A(MAX) |
| USB/TYPE-C | 18W(MAX) | ||
| Protection function | Short circuit, overload, over temperature, over voltage, over current, under voltage, low temperature, etc | ||
| Charging parameter | 58.8V/15A | ||
| Battery capacity | 80AH | ||
| Charging time | 6~7H | ||
| Cycle life | >2500 times, remaining capacity 80% (5%-95%DOD) | ||
| Apparent dimension | 610*440*250(mm) | ||
| weight | About 48KG | ||
Product characteristics：
| 1, SOC remaining capacity display, automatic calibration of battery capacity |
| 2, explosion-proof diffusion type LED power indicator |
| 3, built-in hot gas sol automatic fire extinguishing device |
| 4, SPWM pulse width modulation, closed-loop circuit design |
| 5, pure sine wave AC 220V4000W high power output |
| 6, built-in safer lithium iron phosphate battery pack |
| 7, multi-function DC output (DC48V/ DC24V/12V/USB/TYPE-C) |
8, with over charge, over discharge, high temperature, low temperature protection and low power alarm function |
| 9, with short circuit, overload, overtemperature protection function, safe and reliable |
| 10, customizable communication (CAN, RS485, RS232) |

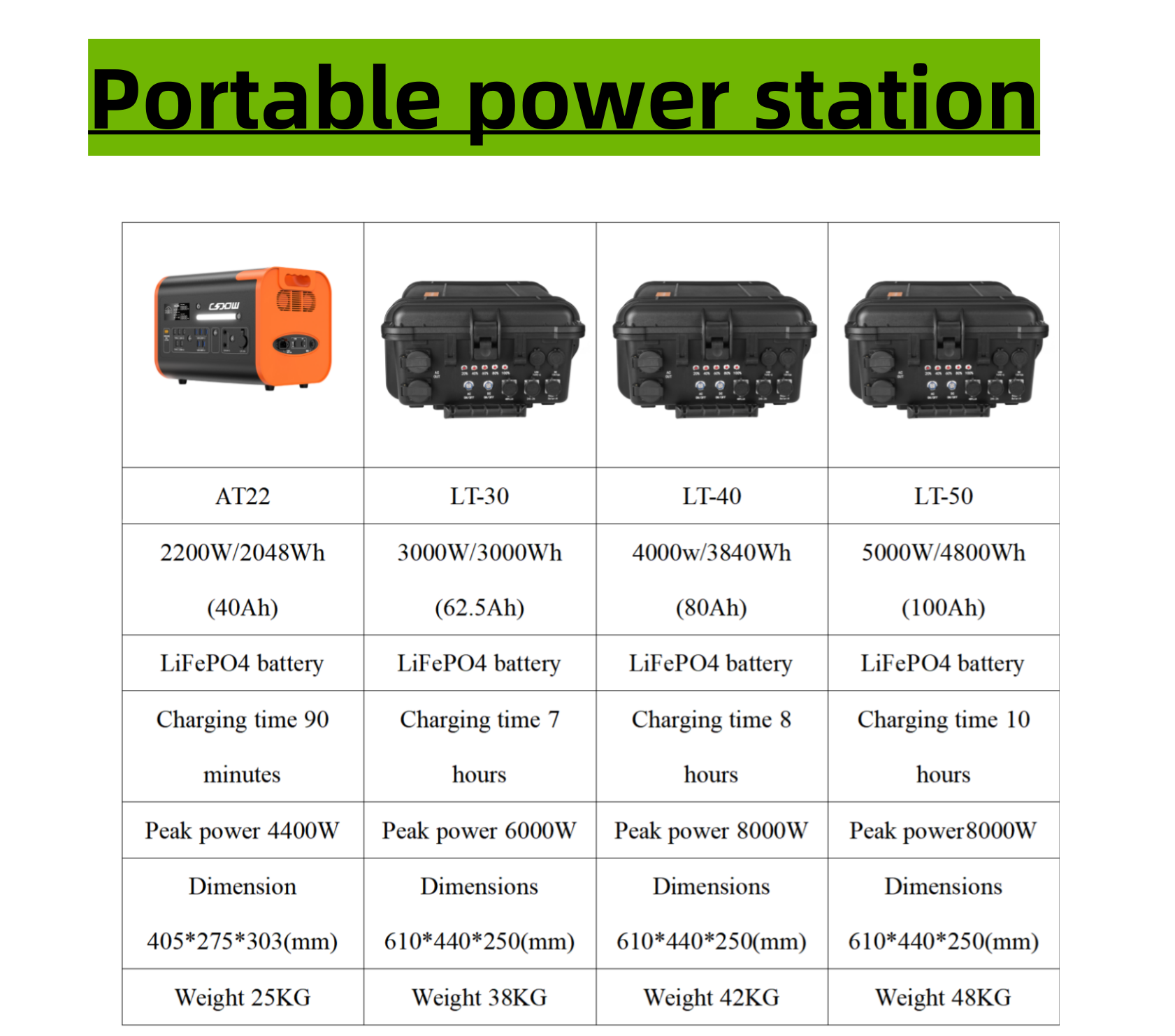

Multiple selection power station：
Product certification:

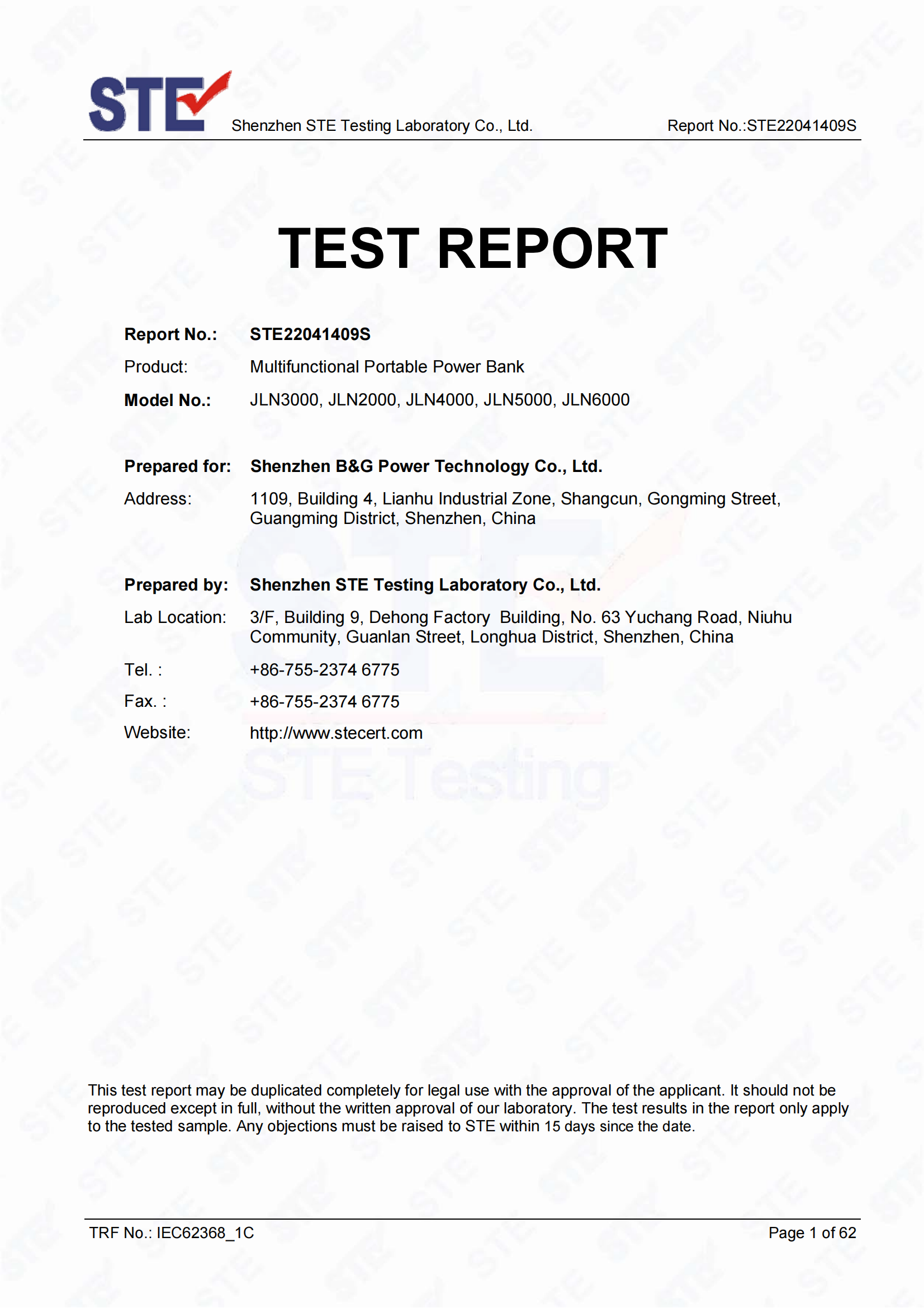

IEC-62368

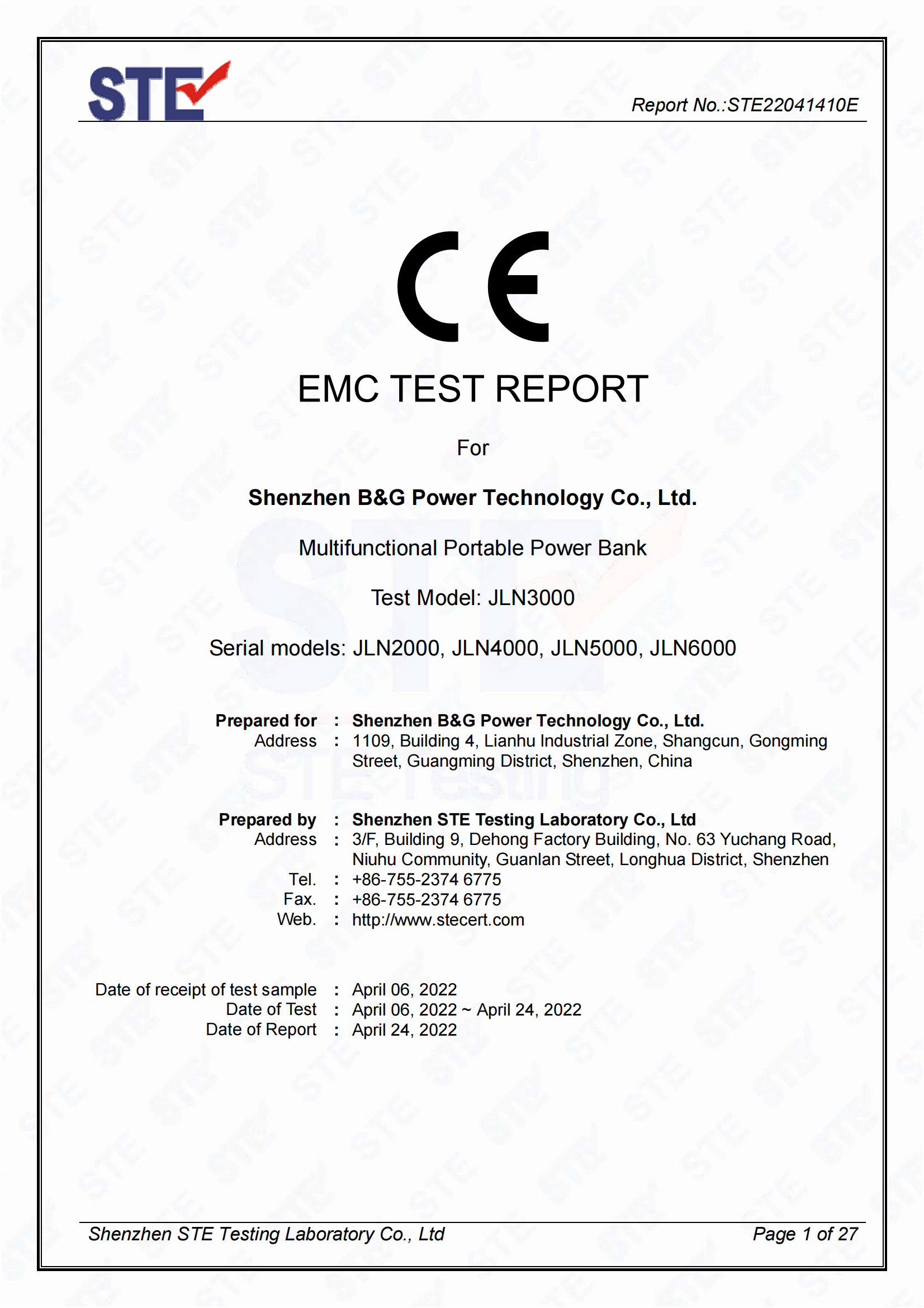

CE

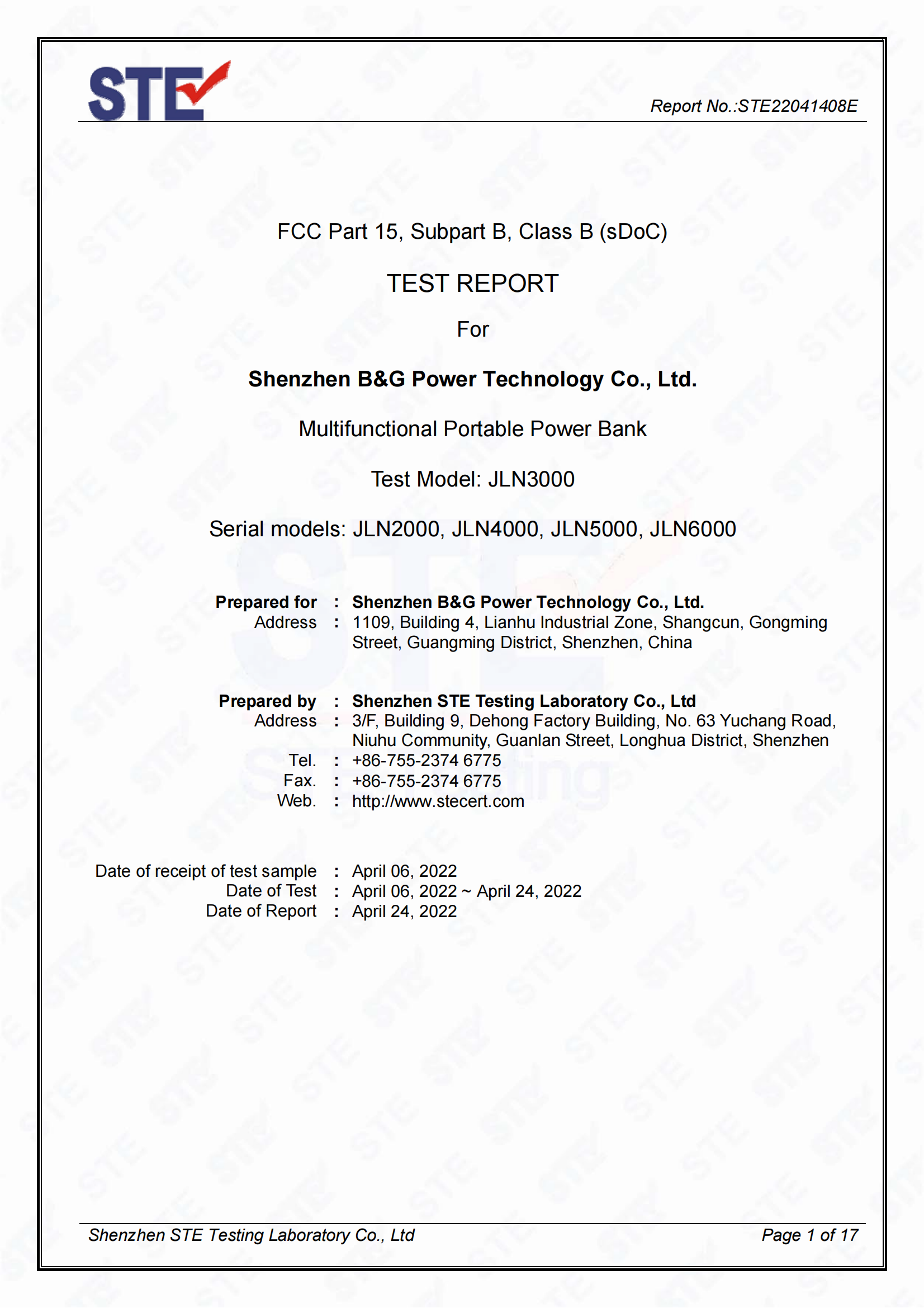

FCC
FAQ:
Q: What is the lead time for your products?
A: The delivery time varies for different products. The delivery time for portable power stations is usually 1 month.
Q: How long is the warranty? How to repair the quality problem? How to deal with quality problems?
A: The product warranty is 1 year. For general minor problems, our company will issue repair instructions and express spare parts.
Q: Can your machines come with refrigerators, coffee makers, and electric kettles?
A: Please read the product manual carefully for more information. As long as the non-inductive load does not exceed our rated load.
Q: Can you supply solar panels? Can you recommend solar panels for each product?
A: We can provide solar panels, if customers need, we can take one-stop solution service (note: solar input of this product needs to be optional)
