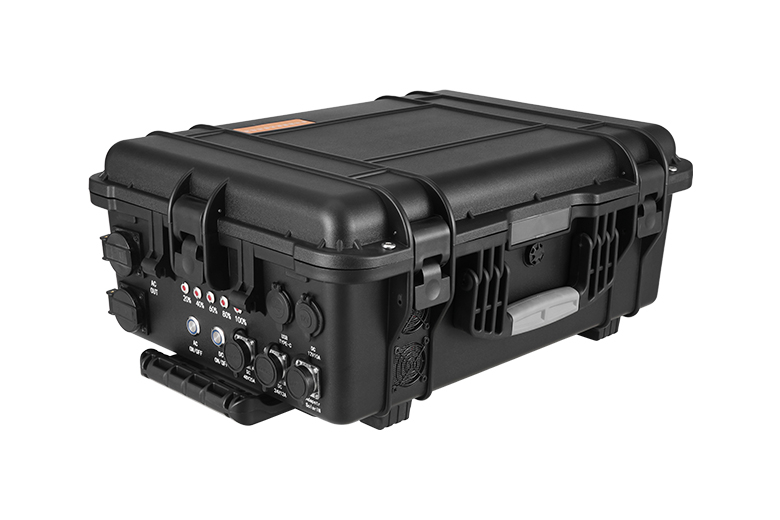

LT30
LT30 products use lithium iron phosphate batteries, which are safer and have stronger performance. They adopt high-frequency SPWM inverter technology, MCU intelligent multiple protection, and TI battery management system.
Automatic fire extinguishing device：Fire extinguishing density: 33g/m3
| Working environment temperature range | －50℃～＋90℃ |
| Relative humidity of working environment | ≤95％RH |
| Spray time | ≤4s |
| spray lag time | ≤1s |
| Oxidant name and content | Strontium nitrate 50% ~ 58% |
| Start mode | Hot Start |
| Hot start temperature | ≥170℃ |
Charging instructions：
| Connect the power adapter to the mains power supply, and the power indicator light will light up. Then connect the adapter connector to the charging port of the power supply. The power supply has built-in charging management. After connecting, the battery level will display in the form of a marquee, indicating that it is charging. When the power supply is full, the battery level display will automatically turn off. , indicating that the power supply is fully charged, please remove the power adapter. |
Product Features:
| Battery type: Lithium iron phosphate battery | AC output current: 15A MAX | AC output voltage: 220V±5% | Output power: 3000W |
| Peak power; 6000W | Output waveform: AC pure sine wave | Waveform distortion: <3% linear load, <8% nonlinear load | Frequency: 50±0.5Hz |
USB/TYPE-C：18W(MAX) | Charging parameters: 54V/12A | Battery capacity: 62.5AH | Charging time: 6~7H |
| Appearance size: 610*440*250(mm) | DC output voltage: 12V 24V 48V | DC output current: 10A(MAX) 12A(MAX) 50A(MAX) | Weight: ~45Kg |
FAQ:
| 1. How long does it take to fully charge a portable power supply? | A: Storage 3000Wh ~3 KWH of electricity, as a reference, assuming that the power consumption of the equipment is 500W(electric kettle), the working time is 3000Wh*0.9/500=~5.4 hours |
| 2. How long does it take to fully charge a portable power supply? | A: Charging time ~6-7 hours Note: The charger select 54V/12A |
| 3. Does the portable power supply support solar charging? | A: Support solar charging, support 12V-75V DC output, maximum support 800W. |
| 4. Why are portable solar plants sometimes noisy? | A: Because this product uses an air-cooled system, the built-in fan can better help the product heat dissipation, so it is normal to have a slight noise during use. |
