LiFePO4-314
LiFePO4-314-230

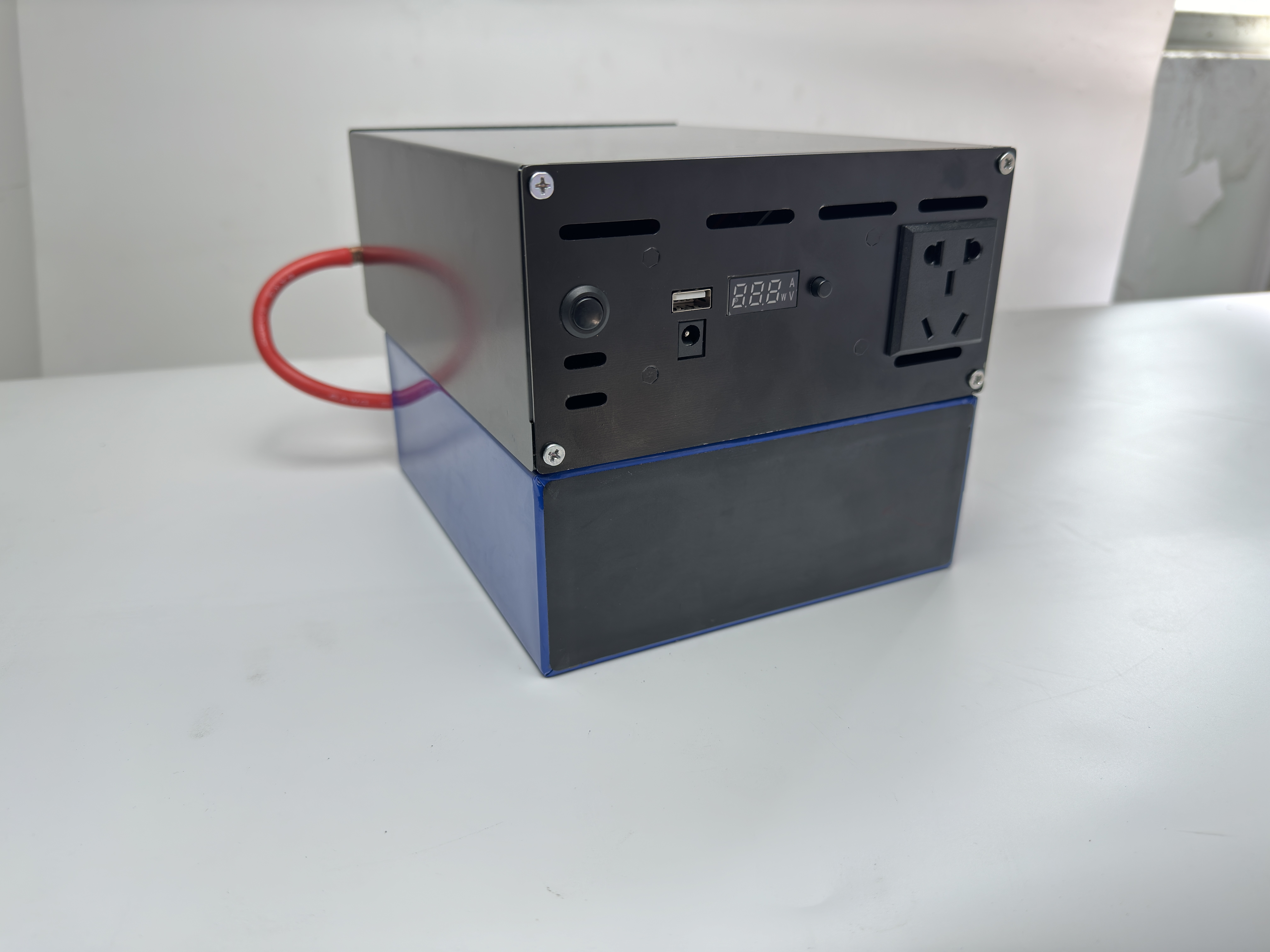

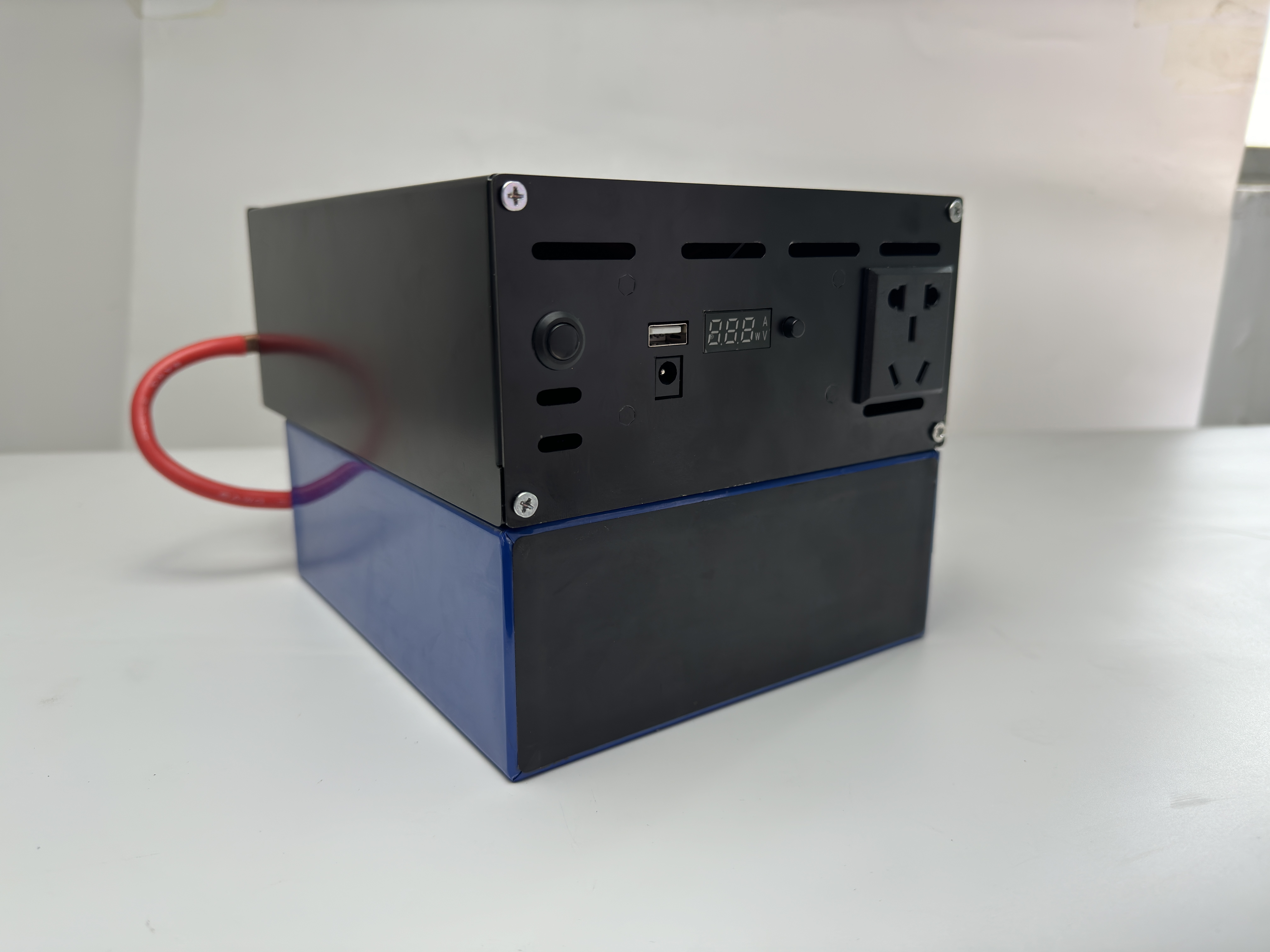

The 3.2V inverter system solar charging lithium iron phosphate battery booster inverter output 230V 300W is an advanced off-grid power solution designed for high efficiency, safety, and durability in demanding environments. Engineered with LiFePO4 3.2V cells, this system delivers reliable 230V AC output with 300W rated power, achieving up to 96% MPPT efficiency and 94% output conversion efficiency, ideal for solar energy storage, outdoor missions, and emergency backup applications.
Superior Safety and Reliability
The LiFePO4 (lithium iron phosphate) chemistry offers zero leakage or explosion risks, ensuring a 3x higher safety level than traditional 12V lead-acid batteries.
Built-in 0.1s short-circuit cutoff and overload/overheat protection mechanisms safeguard both the system and connected devices.
High Solar Charging Efficiency
Features >96% MPPT efficiency, outperforming the industry’s 93% average.
Delivers 25% better shading performance, allowing continuous power generation under partial sunlight conditions.
Flexible Solar Compatibility
Supports 10V flexible solar panels, lower than the 12V minimum industry standard.
Reduces energy loss by up to 40% (94% vs. 90% average).
Wide Operating Range
Functions effectively at -10°C, where lead-acid batteries typically fail.
Perfect for polar regions, outdoor expeditions, and remote installations.
Pure Sine Wave Output
Generates THD <3% clean sine wave power, compatible with medical devices, precision instruments, and sensitive electronics.
Extends the service life of motors and electrical components by up to 2 times.
Compact and Portable System
Integrated inverter and battery booster in one compact module for easy deployment.
Ideal for solar lighting systems, off-grid cabins, RVs, and field operations.
| Mode | LiFePO4-314 |
| Rated Power | 300W |
| Battery | 3.2V314Ah(1004.8Wh) |
| MPPT Efficiency | >96% |
| Max Charging Current | 50A |
| PV Input Voltage | 10V-50V |
| PV Array Maximum Power | 300W |
| Output efficiency | 94% |
| Output Voltage | 230VAC±2% |
| Output Frequency | 50Hz±0.5 |
| Output Wave | Pure Sine Wave |
| Operating temperature | -10℃~40℃ |
| Storage temperature | -15℃~60℃ |
| Ork Altitude | 2000m |
| Environment Humidity | 0%~95% |
Solar Energy Systems: Ideal for solar lithium iron phosphate battery setups with high MPPT efficiency and low loss.
Off-Grid Power Stations: Stable 230V output supports remote telecommunications and monitoring systems.
Outdoor & Emergency Missions: Operates reliably in extreme cold where lead-acid systems fail.
Medical & Laboratory Equipment: Pure sine wave power ensures compatibility with sensitive instruments.
Marine & RV Power Systems: Works as a compact power inverter and lithium iron phosphate solar battery unit.
| Feature | LiFePO4 3.2V | 12V Lead-Acid |
|---|---|---|
| Safety | No explosion or leakage risk | High risk of thermal runaway |
| Cycle Life | 3000–5000 cycles | 300–500 cycles |
| Energy Efficiency | 94–96% | 85–90% |
| Temperature Performance | Works at -10°C | Fails below 0°C |
| Weight | Lightweight | Heavy |
| Maintenance | No maintenance required | Frequent maintenance needed |
With its high energy density, long cycle life, and superior stability, the LiFePO4 battery is widely recognized as the best lithium iron phosphate battery for solar, RV, and backup applications.
CE / RoHS / ISO9001 certified manufacturing standards.
IEC62133 and UN38.3 safety certifications ensure transport and usage compliance.
Designed and tested under international solar inverter and lithium battery safety protocols.
This 3.2V LiFePO4 solar inverter system has been successfully deployed in polar research stations, outdoor telecommunications hubs, and off-grid cabins.
Clients report over 25% improved power yield in partially shaded environments and extended battery lifespan beyond 4000 cycles.
Our team of professional lithium iron phosphate battery manufacturers provides tailor-made energy solutions for solar, industrial, and marine use.
We also supply high-capacity models including 12V 100Ah, 24V 200Ah, and 48V 50Ah smart lithium iron phosphate batteries.
✅ Request a Quote – Get customized pricing for your solar LiFePO4 inverter system.
✅ Download Datasheet – Access full specifications and installation guide.
✅ Contact Our Engineers – Discuss your project requirements and configuration options.
Contact Us Today to learn how our lithium iron phosphate solar battery systems can power your next mission with efficiency, safety, and reliability.
