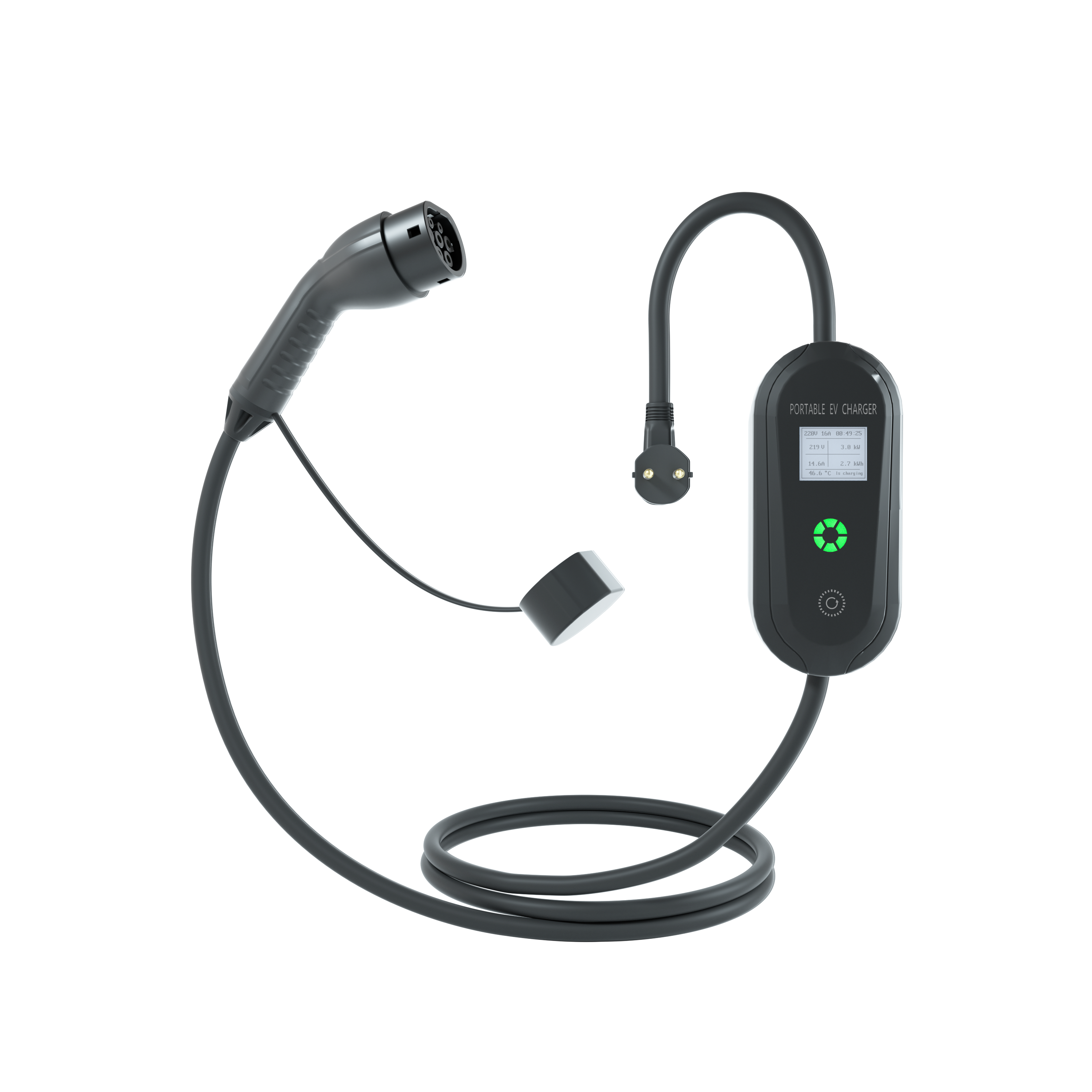

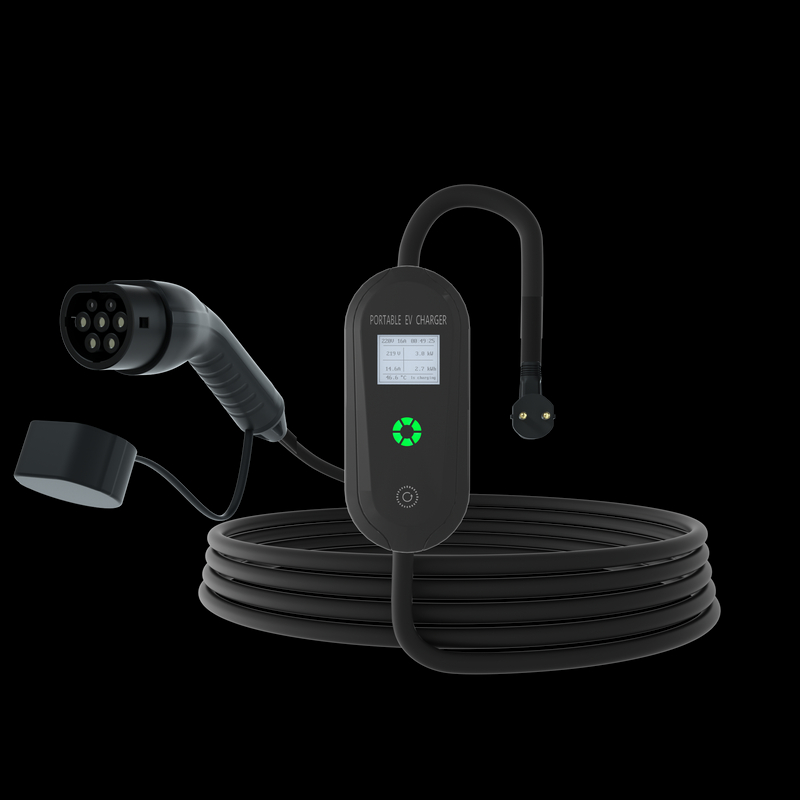

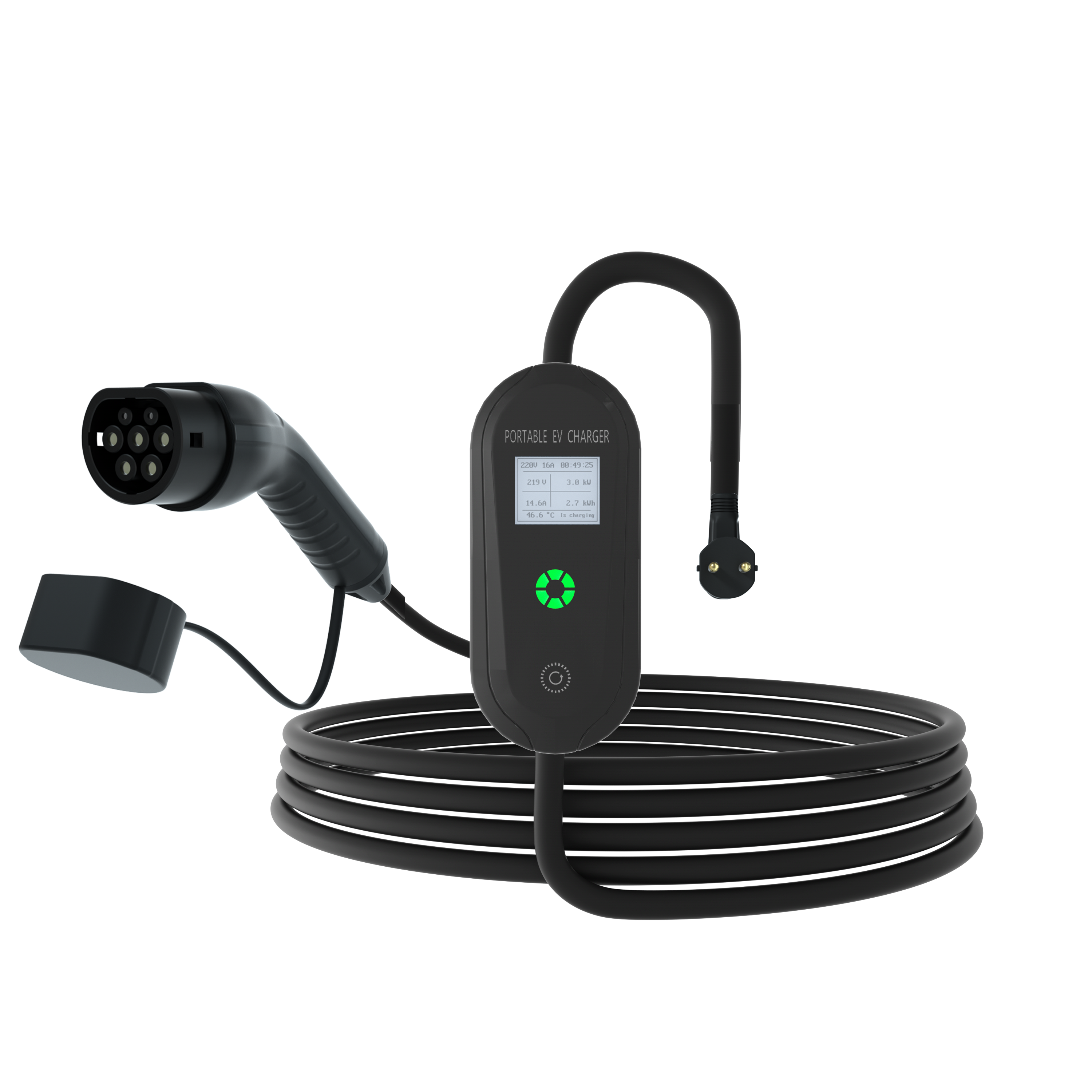

QE-G16-1TP
Our advanced adjustable current power charger is designed to make long-distance charging for new energy vehicles worry-free. With a range of features tailored for convenience and safety, this charger is perfect for various power supply environments.
Adjustable Current Settings: Choose from 8A, 10A, 13A, or 16A to meet the charging requirements of different vehicles and power supply environments.
User-Friendly Display Screen: Easily monitor charging status and adjust settings with the integrated display screen.
Plug and Play: No grounding wire needed, simply plug in and start charging.
High Power Output: Provides up to 3.5KW of power with a 5-meter cable, ensuring efficient and reliable charging for long-distance travel.
IP66 Waterproof and Dustproof: Designed to withstand dust and heavy rain, making it ideal for harsh environments.
Four Current Modes: The charger offers four adjustable current modes (8A/10A/13A/16A), allowing you to select the optimal setting for your vehicle and power supply conditions.
Safety and Compatibility: Meets the safe use of electricity standards in various power supply environments, ensuring compatibility with a wide range of new energy vehicles.
parameter:
Model:G16-1TP | Rated voltage:220V AC | Rated power: 3.5kW | Frequency:50/60Hz |
Rated current: 8A/10A/13A/16A AC Adjust | Charger type: Single-phase AC conduction charging | Box type: LCD + Indicator light | Operating temperature: -25~+50℃ |
Storage temperature : -30~+80℃ | Relative humidity: 5~95%RH(No condensation) | Box size: 205*90*46mm | Cable length:5m |
Weight:1.8kg | Standard: IEC 62196-2016 / EN IEC 61851-2017 / IEC 62752-2018 | Waterproof level: Box:IP65 Gun:IP54 |
